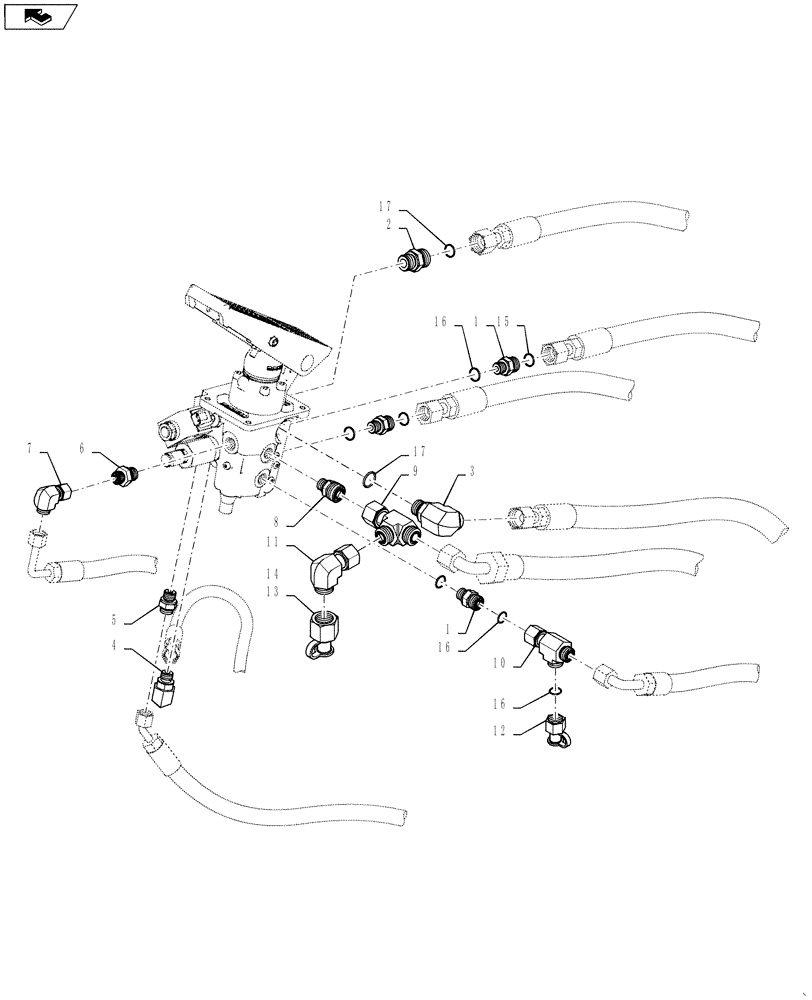

Запчасти Case 1021F (33.202.02[03]) - HYDRAULICS - MAIN BRAKE - VALVE (33) - BRAKES & CONTROLS

1

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Includes (3) Item 15,14437885 and (3) Item 16, 70923841

3шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incudes (1) Item 17, 14438085

1шт.

3

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incudes (1) Item 17, 14438085

1шт.

4

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

1шт.

5

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

1шт.

6

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

7

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

8

87389189

HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB

1шт.

9

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

10

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Includes (1) Item 16, 70923841 Not Shown

1шт.

11

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

12

190316A1

COUPLING

Diagnostic

1шт.

13

324201A1

PLUG

Diagnostic

1шт.

14

H434163

DUST CAP

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

16

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

2шт.
