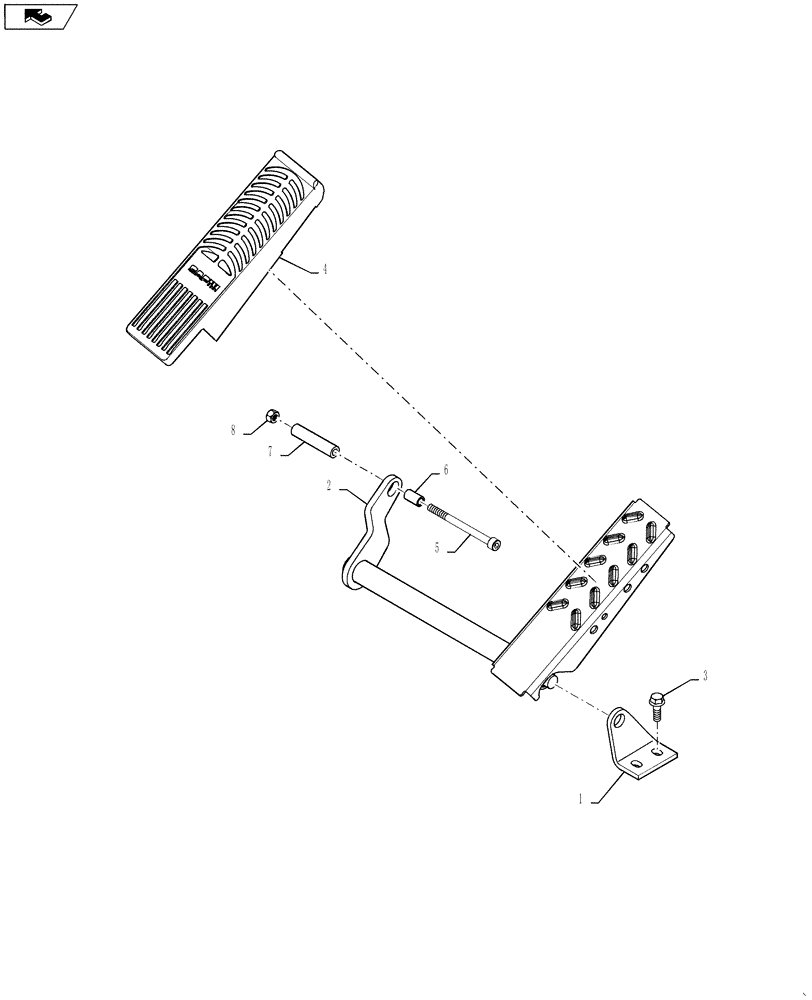

Запчасти Case 1021F (33.120.01) - BRAKE PEDAL - RIGHT HAND (33) - BRAKES & CONTROLS

1

84331789

MOUNT

Right Brake Pedal

1шт.

2

84331791

PEDAL

w/Shaft Assy

1шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

4

84331795

SHIELD

Cover, Brake

1шт.

5

864-8100

SCREW,M8 x 100mm, Cl 8.8

1шт.

6

84390359

SPACER

1шт.

7

84390363

SPACER

1шт.

8

437013

NUT

Prev Tourque Non-Met M8

1шт.
