(44.106.02) - DIFFERENTIAL, FRONT AND REAR, OPEN AXLE

Запчасти Case 1021F (44.106.02) - DIFFERENTIAL, FRONT AND REAR, OPEN AXLE (25) - FRONT AXLE SYSTEM

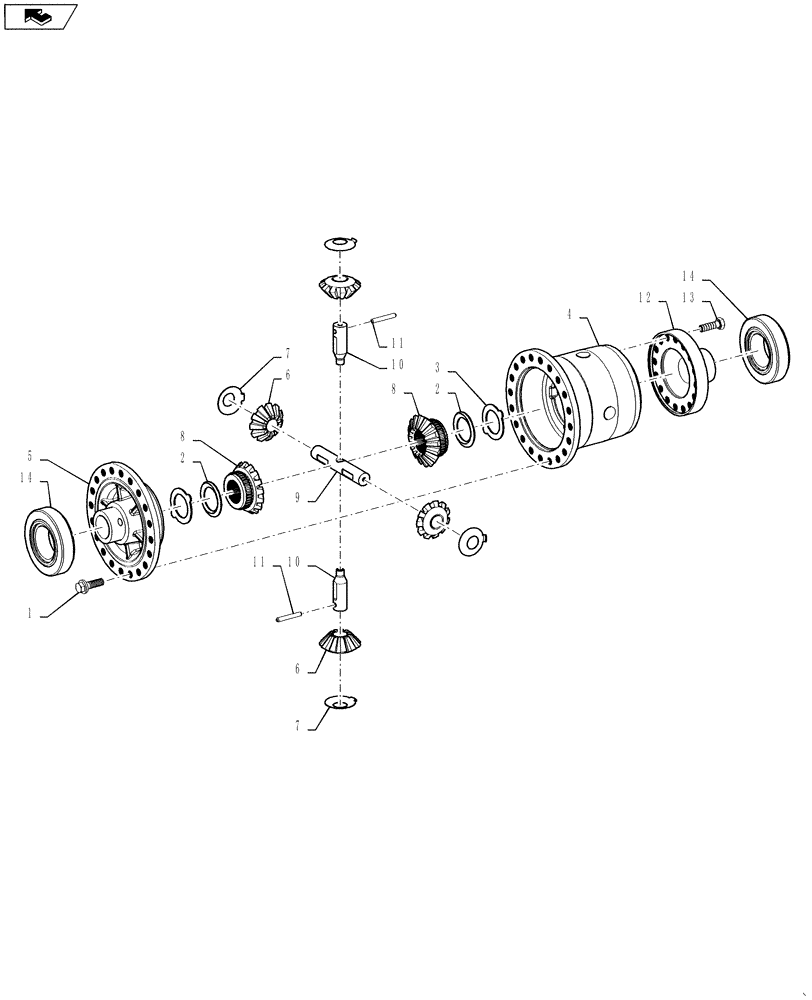

Схема запчастей Case 1021F - (44.106.02) - DIFFERENTIAL, FRONT AND REAR, OPEN AXLE (25) - FRONT AXLE SYSTEM
1
13
11
2
14
3
10
7
6
6
12
8
10
7
9
4
5
11
8
2
14
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84256586R

REMAN-FRONT AXLE

Open Differential

1шт.

84256586C

CORE-FRONT AXLE

Return Number

1шт.

84138728

4WD AXLE ASSY

1шт.

84138728R

REMAN-REAR AXLE

1021F Tier 4 w/315011 Open Differential

1шт.

84138728C

CORE-REAR AXLE

Retrun Number

1шт.

84258247

4WD AXLE ASSY

1шт.

84258247R

REMAN-REAR AXLE

1021F Tier 4 w/ 315011 HD Open Differential

1шт.

84258247C

CORE-REAR AXLE

Return Number

1шт.

1

184716A1

SCREW

20шт.

2

120019A1

THRUST WASHER

2шт.

3

120017A1

THRUST WASHER

2шт.

4

84394844

HOUSING

1шт.

5

84354793

COVER

1шт.

6

120018A1

PINION

4шт.

7

84353924

THRUST WASHER

4шт.

8

384508A1

GEAR

2шт.

9

84353925

DIFFERENTIAL

1шт.

10

84353926

DIFFERENTIAL

2шт.

11

84353927

SLOTTED PIN

2шт.

12

84354794

COVER

1шт.

13

84354752

HEX SOC SCREW

16шт.

14

84394884

ROLLER BEARING,80mm ID x 160mm OD x 45mm W

2шт.
