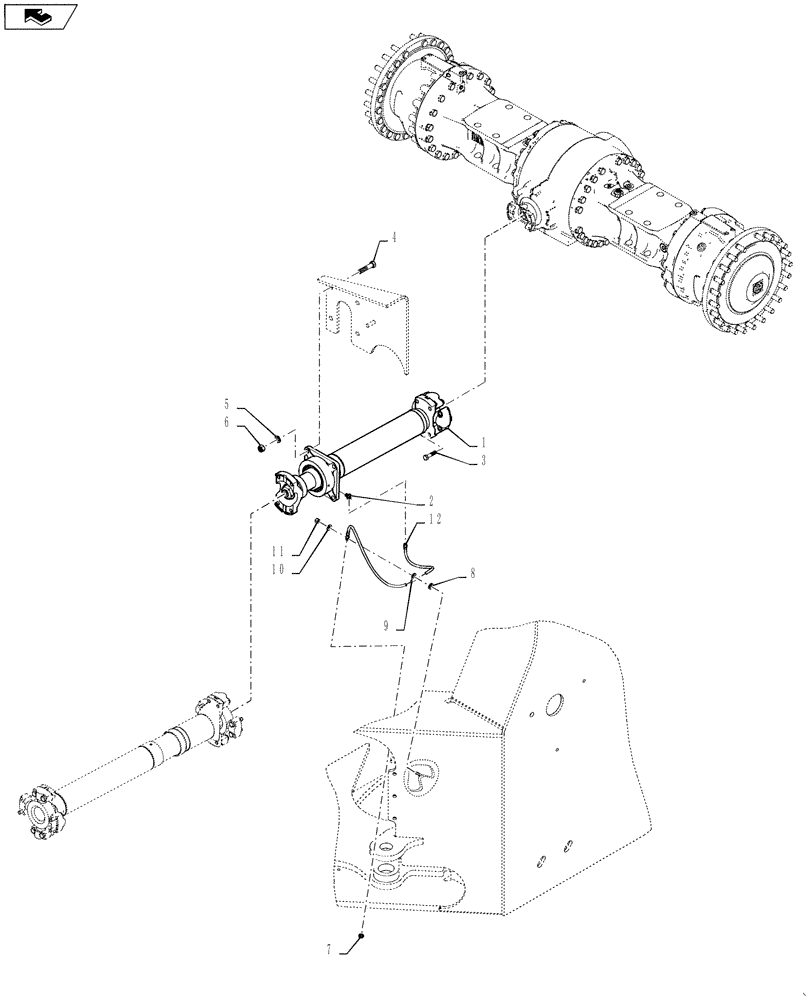

Запчасти Case 1021F (44.100.05) - DRIVE SHAFT, OPEN DIFFERENTIAL (25) - FRONT AXLE SYSTEM

1

84344507

DRIVE SHAFT

1шт.

2

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

3

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

4шт.

4

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

6

829-1416

NUT,M16, Cl 10

4шт.

7

F53473

LOCK NUT,1/8-27 NPSM

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

9

49832

CLAMP

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

12

L54694

HOSE,4.8mm ID x 1041mm L

1шт.
