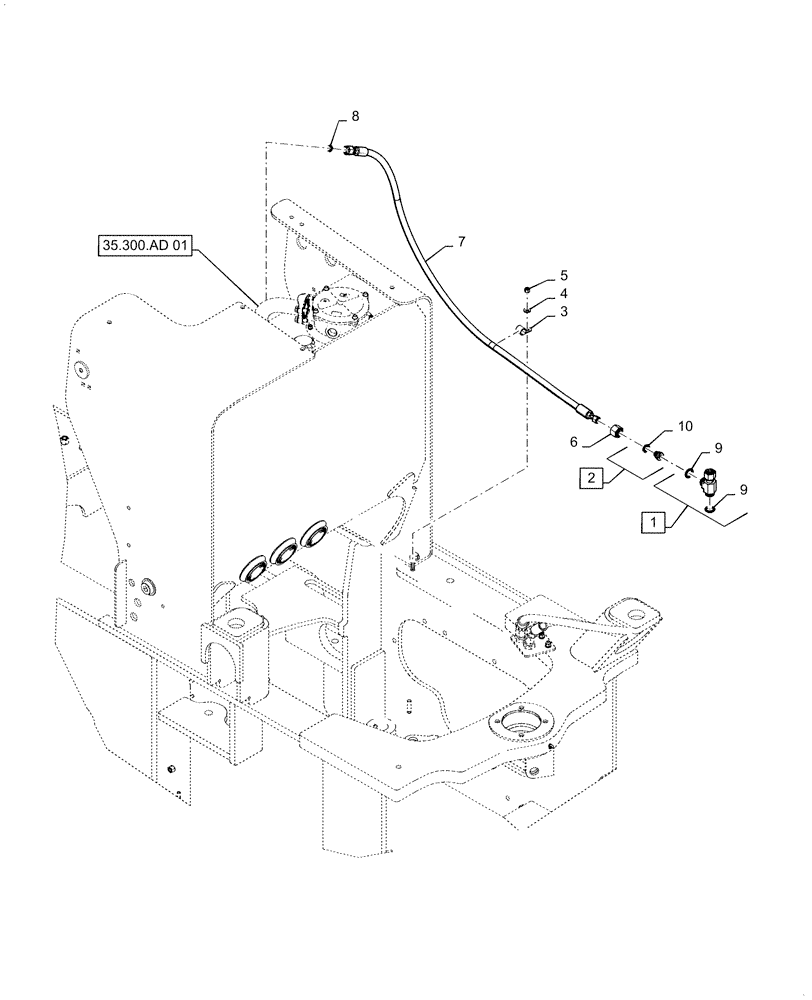

Запчасти Case 1021F (44.100.04) - BYPASS AXLE COOLER (25) - FRONT AXLE SYSTEM

1

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Incl 9

1шт.

2

84570384

REDUCER FITTING

Incl 10

1шт.

3

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

85802972

TUBE NUT,1-3/16'-12 x 26.5mm Thk

1шт.

7

84419533

HOSE ASSY.

Bypass Axle Cooler

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
