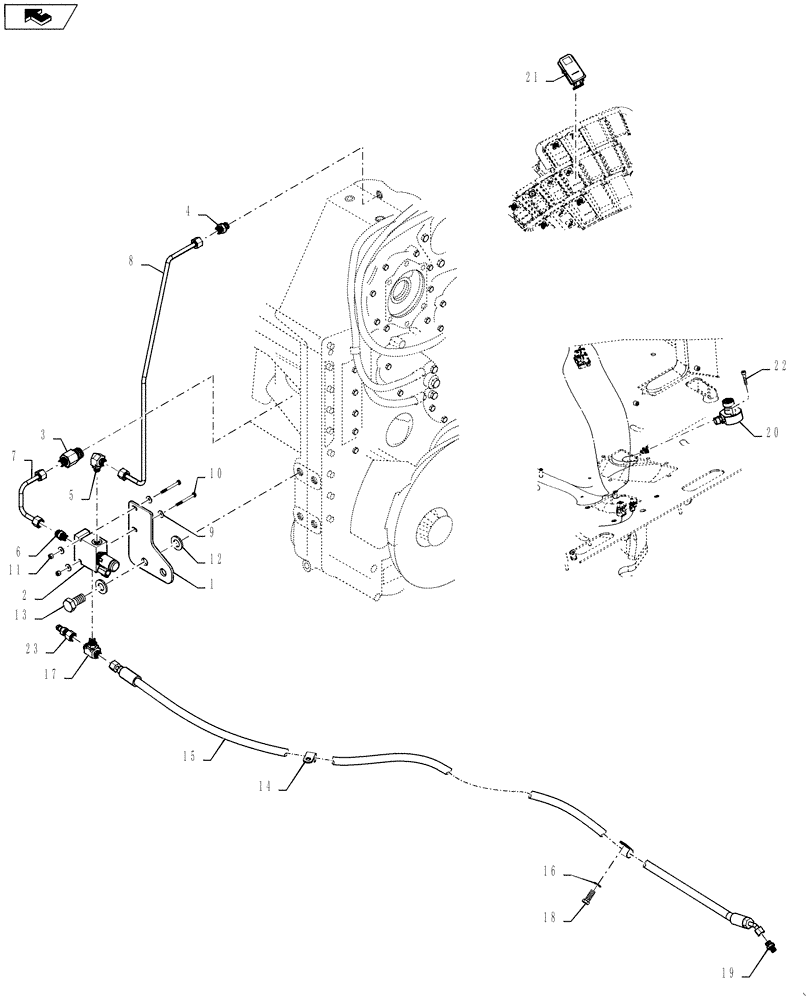

Запчасти Case 1021F (25.102.01) - DIFFERENTIAL LOCK LINE (25) - FRONT AXLE SYSTEM

1

84315401

MOUNTING PLATE

1шт.

2

84300976

LOCK VALVE

1шт.

3

84273235

END FITTING

1шт.

4

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

1шт.

5

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

7

84315402

HYD TUBE

1шт.

8

84489992

TUBE

1шт.

9

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

10

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

11

832-10406

NUT,M6 x 1, Cl 8

2шт.

12

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

13

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

14

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

2шт.

15

84479909

HYDRAULIC HOSE,9.53mm ID x 2529.1mm L, SAE 100R1

1шт.

16

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

17

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

19

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1шт.

20

84313033

DIFF LOCK SWITCH

1шт.

21

84266169

DIFF LOCK SWITCH

1шт.

22

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

1шт.

23

190119A1

COUPLING

1шт.
