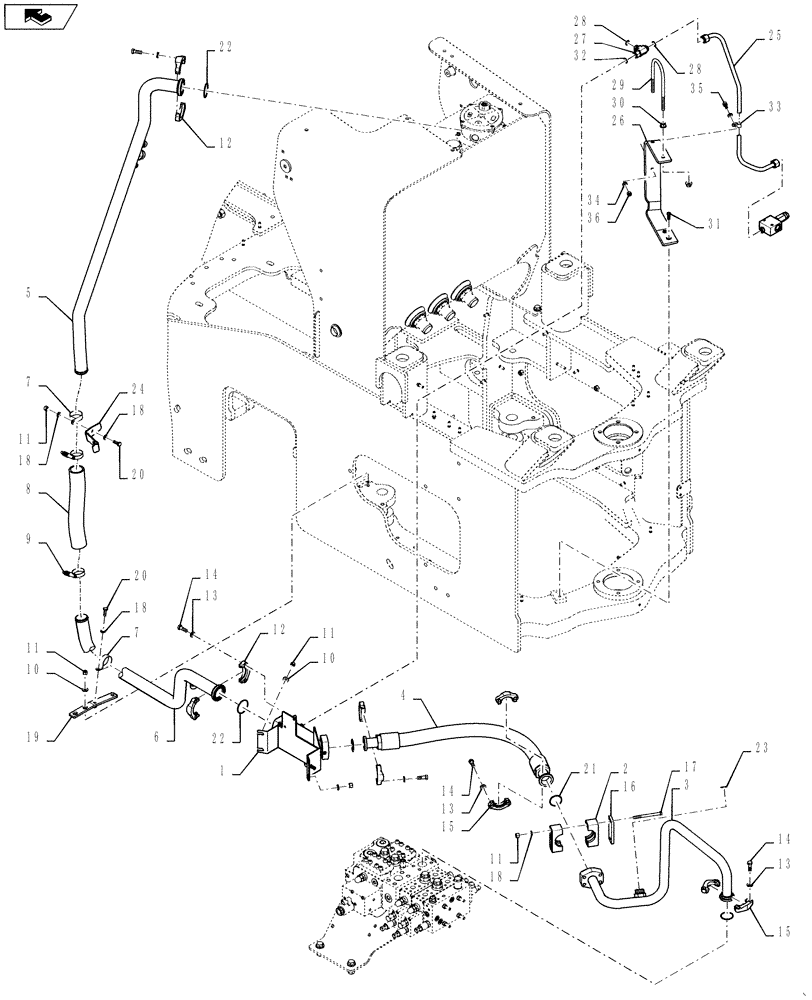

Запчасти Case 1021F (21.135.01) - RETURN LINE INSTALL (21) - TRANSMISSION

1

84419592

HYDRAULIC MANIFOLD

Manifold Return

1шт.

2

84258057

BLOCK

Block Tube Mount

1шт.

3

84425587

HYD TUBE

Tube Valve Return

1шт.

4

84364941

HOSE ASSY.

Hose to Loader Valve

1шт.

5

84361314

HYD TUBE

Tube Filter

1шт.

6

84305561

TUBE

Tube Manifold To Tank

1шт.

7

515-23508

CLAMP,2", Insul, 3/8" Bolt

Clamp 3/8 in Bolt

2шт.

8

84305563

HOSE,50.8mm ID x 384mm L, SAE 100R4

Hose, Serial Range: Manifold-tank

1шт.

9

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Hose Clamp Constant

2шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

Washer

6шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

Nut

9шт.

12

A14141

FLANGE

Flange Split Half Clamp

4шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Washer

20шт.

14

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Bolt

20шт.

15

A14157

FLANGE

Flange

6шт.

16

87398739

PLATE

Plate Clamp Cover

1шт.

17

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

Bolt

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Washer

5шт.

19

84390767

BRACKET, SUPPORTING

Bracket Tube Support

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Bolt

2шт.

21

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

O-Ring

3шт.

22

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

O-Ring

2шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Oring

1шт.

24

84528082

BRACKET

Bracket

1шт.

25

84391514

HYD TUBE

Tube Steering Relief

1шт.

26

84402109

BRACKET

Bracket

1шт.

27

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Tee Also order O-rings # 28

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

29

87349269

U-BOLT

BOLT "U" U- Bolt

1шт.

30

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

Nut

4шт.

31

906034R1

HEX SOC SCREW,Flat Hd, CSK, M12 x 25mm, Cl 10.9

Screw

2шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

O-Ring

1шт.

33

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Washer

2шт.

35

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

Nut

1шт.
