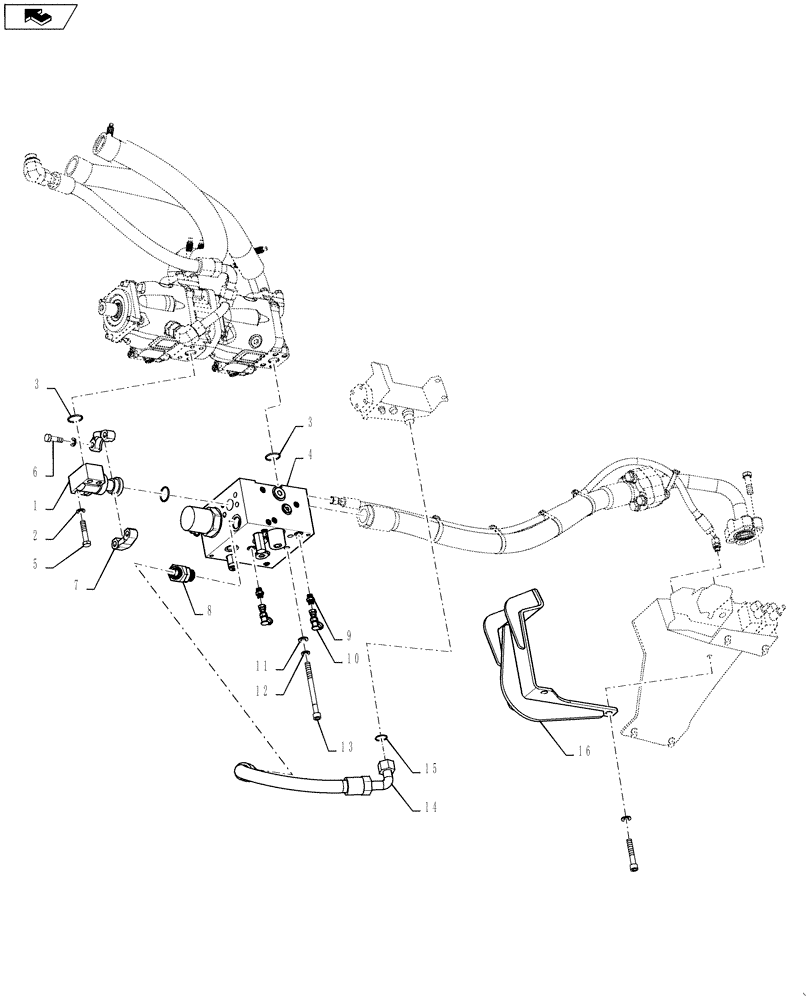

Запчасти Case 1021F (21.130.07) - HYDRAULIC PUMP INSTALL WITH PRIORITY TO LDR VALVE (21) - TRANSMISSION

1

84243173

HYD TUBE

Tube Pump To Manifold

1шт.

2

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Lock Washer

12шт.

3

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

O-Ring

3шт.

4

84305998

VALVE

Valve Priority

1шт.

5

827-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

Bolt

4шт.

6

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

Bolt

4шт.

7

87680118

CLAMP

Clamp

2шт.

8

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Elbow

1шт.

9

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Hyd Connector

3шт.

10

190117A1

COUPLING

Coupling

3шт.

11

895-11014

WASHER,M14 x 28 x 2.5

Washer

4шт.

12

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Lock Washer

12шт.

13

87592606

HEX SOC SCREW,M14 x 2 x 170mm, Cl 10.9

Bolt

4шт.

14

84367004

HOSE ASSY.

Hose

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

O-Ring

2шт.

16

84322201

BRACKET

Bracket

1шт.
