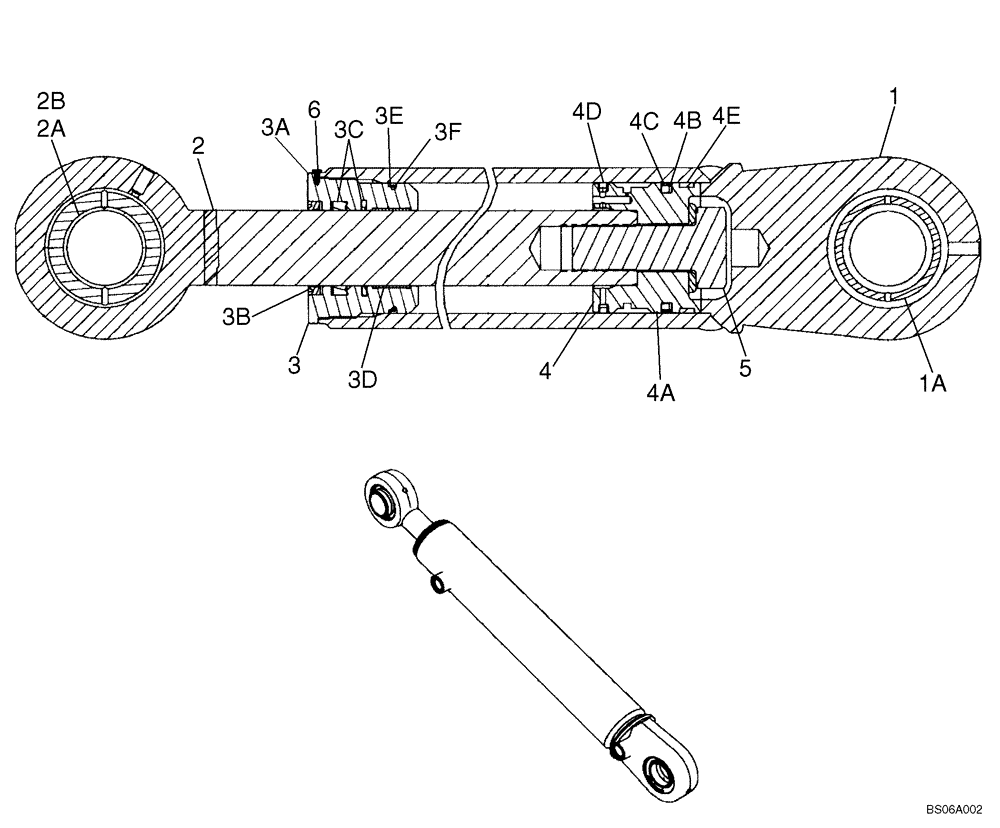

Запчасти Case 921E (05-15) - CYLINDER ASSY - STEERING (05) - STEERING

87349646

CYLINDER ASSY.

88.9ID x 477 Stroke; Incl. 1 - 6

2шт.

87349646R

REMAN-HYD CYLINDER

921E WHEEL LOADER TIER 3 (NA/EU), 88.9ID x 477 Stroke (2/07-)

2шт.

87349646C

CORE-HYD CYLINDER

Return Number

2шт.

87399336

SEAL KIT

Incl. Refs. 3B - 3F, 4B - 4E

1шт.

1

87349651

TUBE,88.90 mm DIA

Tube Weldment ; Incl. 1A

1шт.

1a

S109373

BUSHING

1шт.

2

87349662

PISTON ROD,50.8mm OD x 717.1mm L

Incl. 2A, 2B

1шт.

2a

1346233C1

SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 76.2mm W

Bushing; Self Aligning

1шт.

2b

100-21315

SNAP RING,3.156", Int, #315

CLAMP hose, attaches to radiator fan shroud

2шт.

87533657

PLUNGER

PACKAGE, PISTON/GLAND; Incl. 3A - 3F, 4A -4E, 5

1шт.

3

87429862

GLAND

Incl. 3A - 3F

1шт.

3a

87429863

PISTON

1шт.

3b

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper, Rod; 50.8

1шт.

3c

1542876C1

SEAL KIT,50.8mm Rod

1шт.

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal

1шт.

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

3d

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

Bearing Rod

1шт.

3e

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

Backup Ring

1шт.

3f

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

4

87349680

PISTON ASSY

Incl. 4A - 4E

1шт.

4a

87349686

PISTON

88.9; 50.8 Rod

1шт.

4b

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

Loader; 88.9 Dia

1шт.

4c

87399593

SEAL,85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

4d

238799A1

SEALING RING,Locking, 80.65mm ID x 88.77mm OD x 4.74mm Thk

Cast Iron

1шт.

4e

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

88.9 Dia

1шт.

5

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

1-1/4 x 3-1/4

1шт.

6

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
