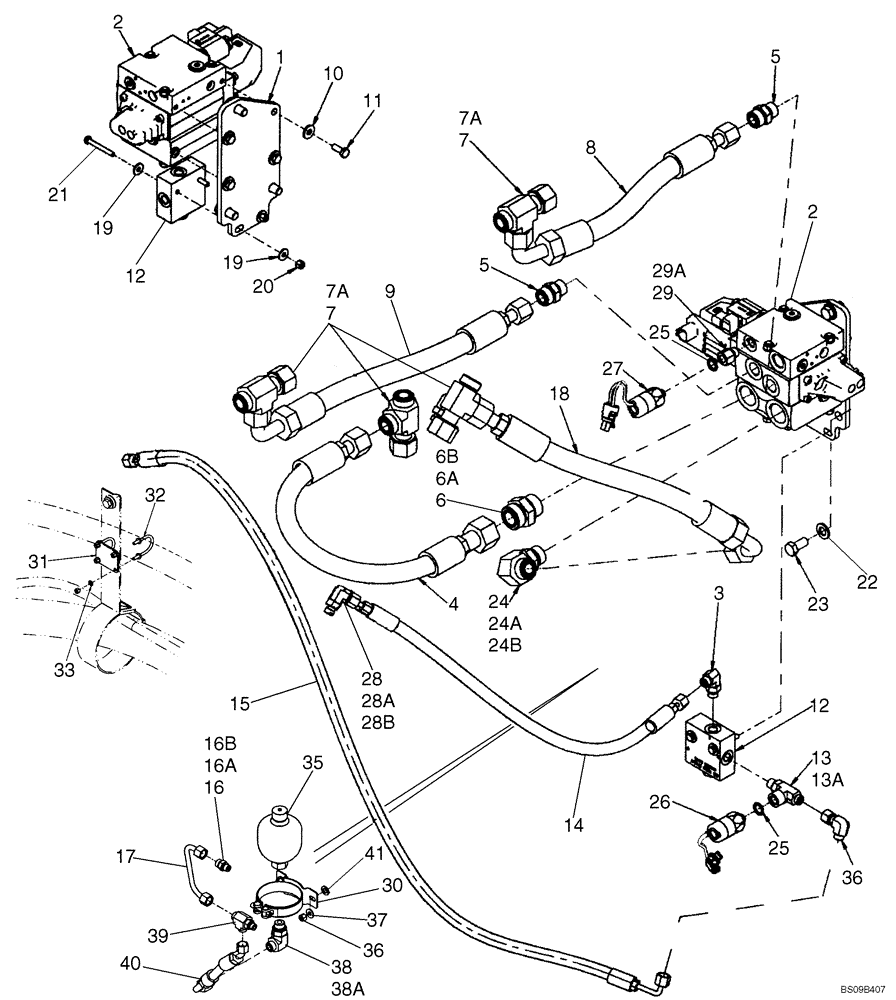

Запчасти Case 921E (05-14) - JOYSTICK STEERING - HYDRAULICS - AUXILIARY (05) - STEERING

1

84138240

BRACKET

Joystick Steering Valve

1шт.

2

87477003

VALVE

PVG32, Joystick Steering Proportional; See Figure 05-17

1шт.

3

84176570

FITTING

1шт.

4

84138311

HOSE ASSY.

Valve To Tank, 520 mm (20 - 15/32 in)

1шт.

5

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

6

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 6A, 6B

1шт.

6a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

6b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Ref. 7A

4шт.

7a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

8

84182611

HOSE ASSY.

Valve To Cylinder, 505 mm (19 - 7/8 in)

1шт.

9

84140790

HOSE ASSY.

Valve To Cylinder, 580 mm (22 - 53/64 in)

1шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

12

87719987

VALVE

PVFC, Joystick Steering; See Figure 05-18

1шт.

13

87477375

FITTING

Incl. Ref. 13A

1шт.

13a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

14

84138849

HOSE ASSY.

Steering, 810 mm (31 - 7/8 in)

1шт.

15

87724965

HOSE ASSY.,6.35mm ID x 1350mm L, SAE 100R2

Steering Load Sense, 1350 mm (53 - 9/64 in)

1шт.

16

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 16A, 16B

1шт.

16a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

16b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

18

84138317

HOSE ASSY.

Steering, 500 mm (19 - 2/3 in)

1шт.

17

84197261

HYD TUBE,9.52 mm OD x 139, 51 mm L

Steering Load Sense

1шт.

19

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

20

832-10406

NUT,M6 x 1, Cl 8

2шт.

21

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

23

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

3шт.

24

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. Refs. 24A, 24B

1шт.

24a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

24b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12 mm

2шт.

26

87476564

PRESSURE SWITCH

Load Sense Pressure

1шт.

27

84175670

PRESSURE SWITCH

Pilot Pressure

1шт.

28

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. Refs. 28A, 28B

1шт.

28a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

Boss Seal

1шт.

28b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

29

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer; Incl. Ref. 29A

1шт.

29a

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

87750434

CLAMP

Assy.

1шт.

31

87482193

PLATE

U-Bolt Mount

1шт.

32

87482192

U-BOLT

2шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

35

87746283

ACCUMULATOR

1шт.

36

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. Ref. 36A

1шт.

36a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

37

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

38

87725875

FITTING

Incl. Ref. 38A

1шт.

39

84197249

TEE

1шт.

38a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

40

84197234

HOSE

Accumulator, 239 mm ( 9 - 13/32 in)

1шт.

41

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
