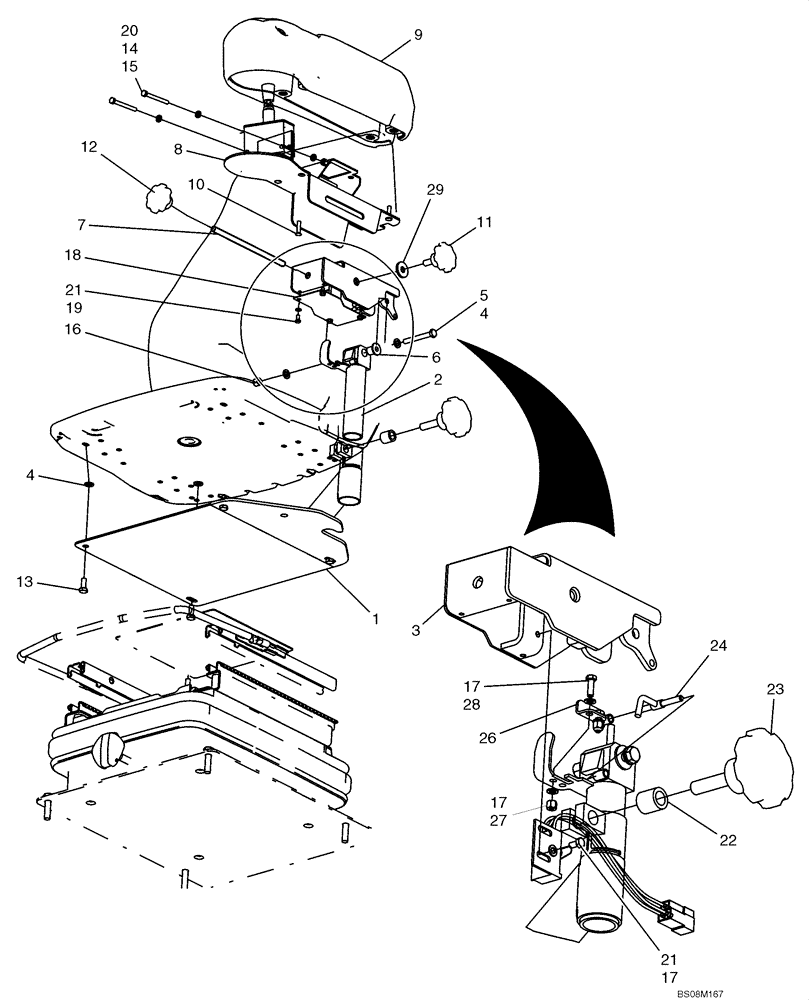

Запчасти Case 921E (05-12) - JOYSTICK STEERING - ARMREST, JOYSTICK CONTROL (05) - STEERING

1

84237050

ARMREST

Support, Replaced 84122456

1шт.

2

84122459

PIPE

Armrest Support

1шт.

3

84237051

SUPPORT

Armrest Pivot, Replaced 84122463

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

1шт.

6

84237304

BUSHING,8mm ID x 14mm OD x 18.5mm L

Nylon, Replaced 87488637

2шт.

7

87481097

THREADED ROD

1шт.

8

84151858

SUPPORT

Switch Pad

1шт.

9

84152026

ARMREST

Assembly

1шт.

10

86512463

SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8

4шт.

11

87484867

KNOB

1шт.

12

87484866

KNOB

1шт.

13

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

18

84122483

PLATE

Cover

1шт.

19

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

20

832-10406

NUT,M6 x 1, Cl 8

2шт.

21

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

6шт.

22

84127845

SPACER,13mm ID x 20mm OD x 20mm L

1шт.

23

84126334

KNOB

Armrest Adjustment

1шт.

24

84132419

PIN

Lock

1шт.

26

84132422

BRACKET

1шт.

27

832-10405

NUT,M5 x .8, Cl 8

2шт.

28

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

29

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.
