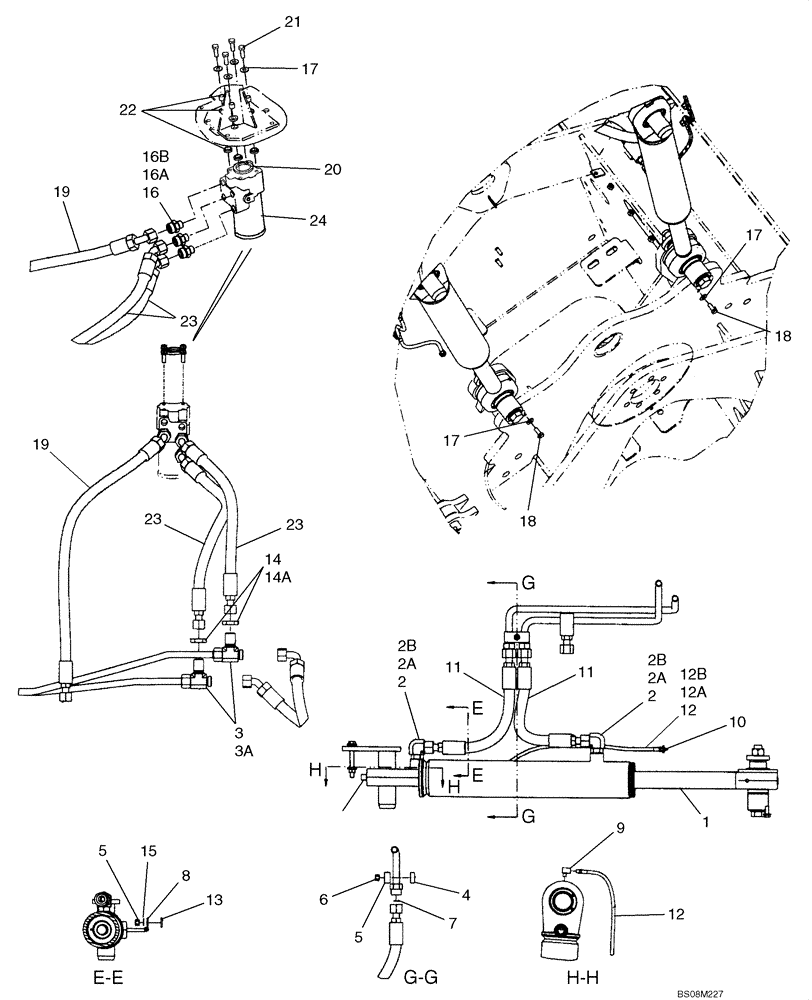

Запчасти Case 921E (05-10) - STEERING, STANDARD - HYDRAULICS - CYLINDER (05) - STEERING

1

87349646

CYLINDER ASSY.

Steering, See Figure 05-15

2шт.

1

87349646R

REMAN-HYD CYLINDER

921E WHEEL LOADER TIER 3 (NA/EU), Steering (2/07-)

2шт.

1

87349646C

CORE-HYD CYLINDER

Return Number

2шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 2A, 2B

2шт.

2a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

2b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

3

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

Incl. 3A

2шт.

3a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

4

87532055

SPACER

1шт.

5

87534152

CLAMP

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

8

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

9

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

10

F53473

LOCK NUT,1/8-27 NPSM

Hex

2шт.

11

87533193

HOSE ASSY.

437 mm (17-1/4 in) Steering Cylinder Base And Rod

2шт.

12

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (40 63/64 in); Grease; Incl. Refs. 12A, 12B

1шт.

12a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

12b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

14

701-1249

BHD LOCK NUT,1-3/16" - 12

Incl. Ref. 14A

2шт.

14a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

15

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

16

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. 16A, 16B

3шт.

16a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

16b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

19

87571626

HOSE ASSY.

Steering, 1275mm (50-1/4 in)

1шт.

20

76043957

GASKET

Steering Orbital

1шт.

21

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

22

REF

INSTRUCTION

Grommet and Collar Supplied With Cab

1шт.

23

87373632

HOSE ASSY.

Steering;Left; 822mm (32 in)

2шт.

24

87345932

VALVE

Steering Control; See Figure 05-19

1шт.
