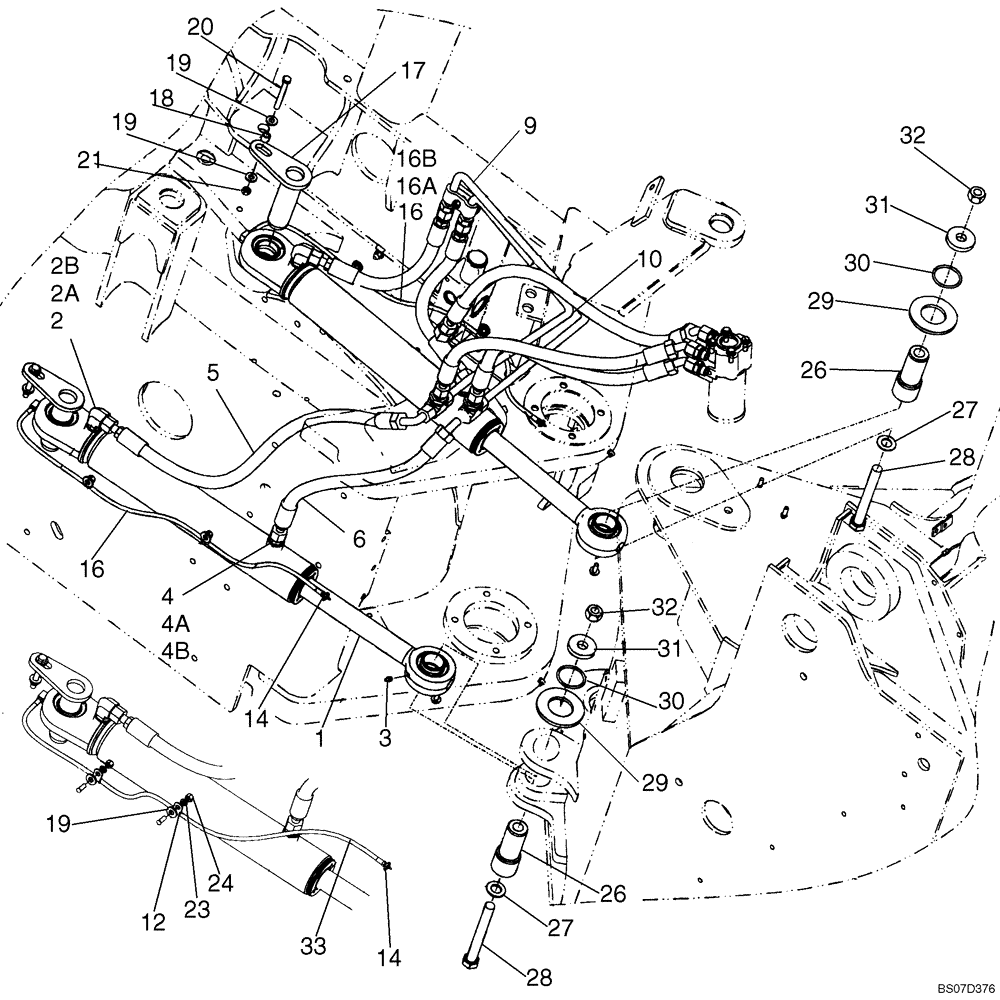

Запчасти Case 921E (05-09) - STEERING, STANDARD - HYDRAULICS - CYLINDER (05) - STEERING

1

87349646

CYLINDER ASSY.

Steering; See Figure 05-15

2шт.

1

87349646R

REMAN-HYD CYLINDER

921E WHEEL LOADER TIER 3 (NA/EU), Steering (2/07-)

2шт.

1

87349646C

CORE-HYD CYLINDER

Return Number

2шт.

2

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 2A, 2B

2шт.

2a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

2b

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 4A, 4B

1шт.

4a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

5

87374919

HOSE ASSY.

918mm ( 36 in ); Base; RH

1шт.

6

87534148

HOSE ASSY.

631mm ( 25 in ); Rod; RH

1шт.

9

87532051

HYD TUBE,.75" OD

Steering Base LH

1шт.

10

87532049

HYD TUBE,19.05 mm OD x 669 mm L

Steering Rod LH

1шт.

12

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

4шт.

14

F53473

LOCK NUT,1/8-27 NPSM

Hex

2шт.

16

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

1041 mm (40 63/64 in); Grease; Incl. 16A, 16B; Replaces L54694; If Used

2шт.

16a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

16b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

17

87380685

PIN,50.76mm OD x 184mm L

Steering Cylinder Base

2шт.

18

L128157

SPACER,12.95mm ID x 19.05mm OD x 16mm L

2шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

20

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

21

832-10412

NUT,M12 x 1.75, Cl 8

Replaces 829-1412 Nut, M12, Cl10 Used On Some Models

2шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

26

L130039

PIN,63.53mm OD x 151.4mm L

Steering

2шт.

27

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Heat Treated

2шт.

28

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

2шт.

29

102594A1

SPACER

Polymer

2шт.

30

108115A1

SEALING RING,62.865mm ID x 5.334mm Width

2шт.

31

L107918

WASHER,26.2mm ID x 70mm OD x 12.7mm Thk

2шт.

32

829-1424

NUT,M24, Cl 10

2шт.

33

87444057

FLEXIBLE HOSE

1185 mm (46 - 2/3 in); Grease; Incl. Refs. 33A, 33B; If Used

2шт.

33a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

33b

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
