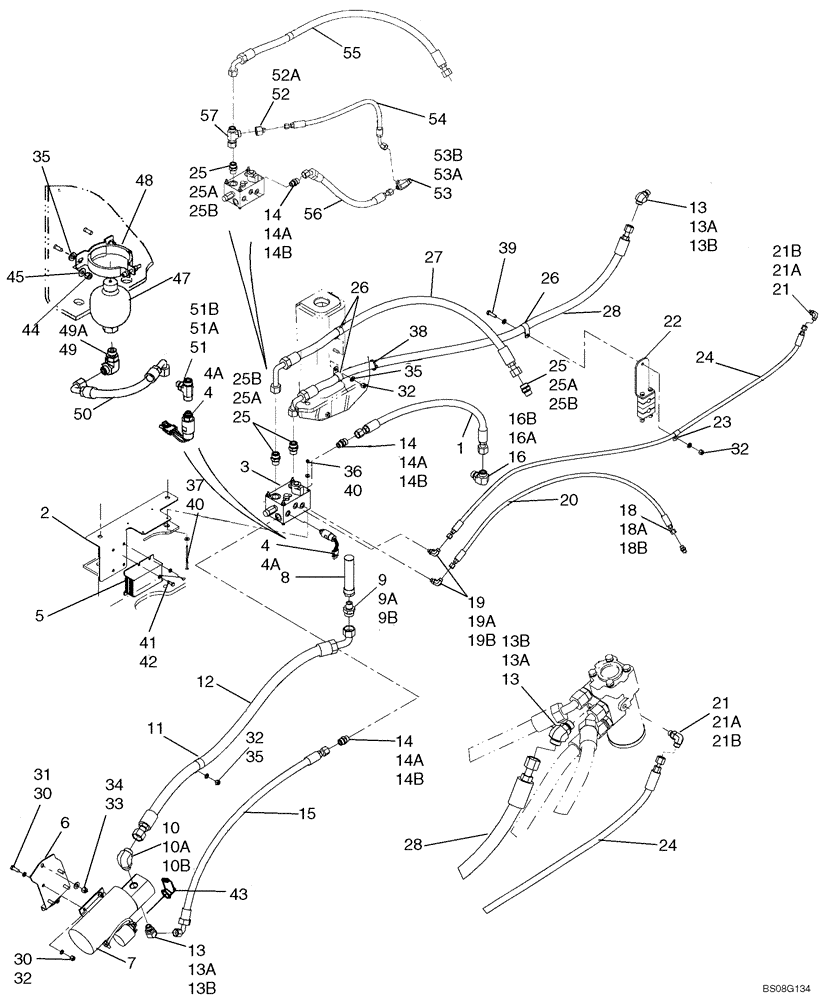

Запчасти Case 921E (05-08) - STEERING - HYDRAULICS - AUXILIARY (05) - STEERING

1

87571627

HOSE ASSY.

Tank; 808mm ( 32 in ); If Used

1шт.

2

87533967

BRACKET

Auxiliary Steering Module

1шт.

3

87609806

MANIFOLD

Auxillary Steering, See Figure 05-20

1шт.

4

398888A1

PRESSURE SWITCH

Pressure; Incl. Ref. 4A

1шт.

4a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

8603171

MODULE

Auxiliary Steering

1шт.

6

87398776

BRACKET

1шт.

7

87581480

ELECTRIC PUMP

Auxiliary Steering, See Figure 05-16

1шт.

8

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

9

87433494

HYD CONNECTOR

Straight Thread ORFS To NPT; Incl. 9A

1шт.

9a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

10

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 10A, 10B

1шт.

10a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

10b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

11

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

12

87398778

HOSE ASSY.

Auxiliary Suction; 1328mm ( 52 in )

1шт.

13

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 13A, 13B

2шт.

13a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

13b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

14

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 14A, 14B

2шт.

14a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

14b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

15

87533197

HOSE ASSY.

Steering Pressure; 1000mm ( 40 in )

1шт.

16

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 16A, 16B; If Used

1шт.

16a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

16b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

18

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 18A, 18B

1шт.

18a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

18b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 19A, 19B

2шт.

19a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face

1шт.

20

87533200

HOSE ASSY.

Load Sense; 1170mm ( 46 in )

1шт.

21

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 21A, 21B

1шт.

21a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

21b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss

1шт.

22

87533196

BRACKET

1шт.

23

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

24

87533201

HOSE ASSY.

Steering Load Sense; 1790mm ( 71in )

1шт.

25

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 25A, 25B

3шт.

25a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

25b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

26

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

3шт.

27

87533198

HOSE ASSY.

Pressure; 1232 mm ( 49 in ); If Used

1шт.

28

87533199

HOSE ASSY.

Steering Pressure; 1700 mm ( 67in )

1шт.

30

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

31

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

33

895-15012

WASHER,M12 x 28 x 2.5

2шт.

34

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4-6шт.

36

832-10406

NUT,M6 x 1, Cl 8

4шт.

37

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

8шт.

39

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

40

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

42

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

43

L126713

BOOT

Electrical; If Used

1шт.

REF

INSTRUCTION

THE FOLLOWING PARTS MAY OR MAY NOT BE USED

1шт.

44

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

45

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

47

87746283

ACCUMULATOR

Auxiliary Steering

1шт.

48

87750434

CLAMP

COLLAR, Assy.

1шт.

49

87725875

FITTING

90 deg.; Incl. Ref. 49A

1шт.

49a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

50

87725513

HOSE,9.53mm ID x 340mm L, SAE 100R16

HOSE, Auxiliary Steering Accumulator; 340 mm (13 - 3/8 in)

1шт.

51

87725512

TEE

TEE, With Orifice For Pressure Sensor; Incl. Refs. 51A, 51B

1шт.

51a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

51b

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

52

87657103

ADAPTER

Reducer W/ Orifice; Incl. Ref. 52A

1шт.

52a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

53

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. Refs. 53A, 53B

1шт.

53a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

53b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

54

87730566

HOSE,9.53mm ID x 792mm L, SAE 100R12

HOSE, Pilot to Tank; 762 mm (30 in); If Used

1шт.

55

87730567

HOSE,19.05mm ID x 1232mm L, SAE 100R12

HOSE, Pressure; 1232 mm (48 - 1/2 in); If Used

1шт.

56

87730568

HOSE,15.88mm ID x 650mm L, SAE 100R1

HOSE, Tank; 650 (25 - 39/64 in); If Used

1шт.

57

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1шт.
