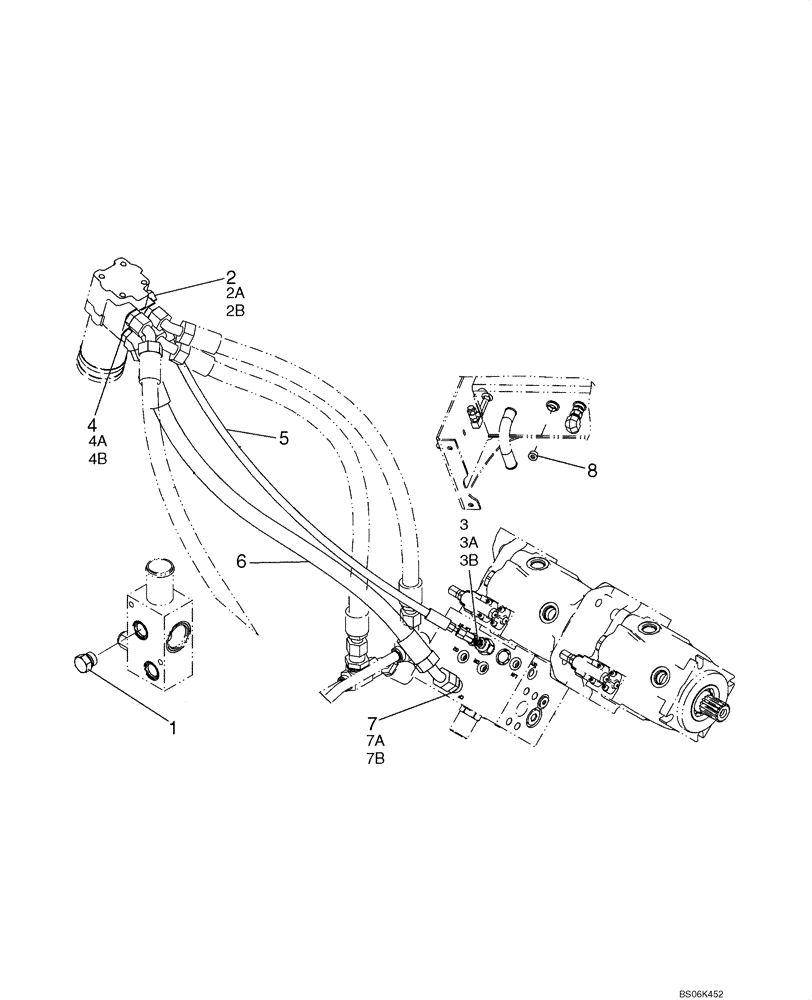

Запчасти Case 921E (05-07) - STEERING - HYDRAULICS (05) - STEERING

1

220068A1

PLUG,M27 x 2, ORB

If Used

2шт.

2

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 2A, 2B

1шт.

2a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss

1шт.

3

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 3A, 3B

1шт.

3a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 4A, 4B

1шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss

1шт.

5

87533969

HOSE ASSY.

Load Sense; 915mm ( 36 in )

1шт.

6

87546233

HOSE ASSY.

Steering Supply; 921mm ( 36-1/4 in )

1шт.

7

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. 7A, 7B

1шт.

7a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss

1шт.

8

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.
