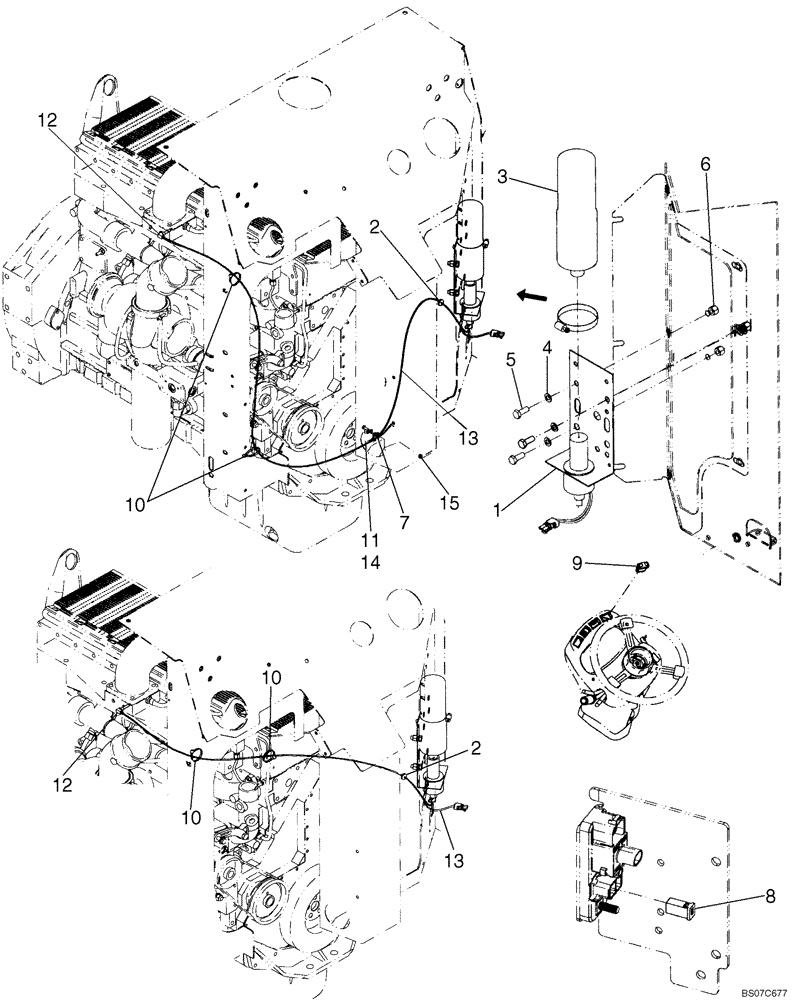

Запчасти Case 921E (04-28) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

L126198

VALVE

Solenoid; Incl. Ref. 1A

1шт.

1a

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Not Illustrated

1шт.

2

248-2331

GROMMET,1/8" ID x 5/8" Groove Dia, Str Cut

1шт.

3

A171940

CYLINDER

Ether Start

1шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

7

515-2148

CLAMP,3/16", Insul, 1/4" Bolt

If Used

1шт.

8

87327335

FUSE,20 Amp

32V 20A

1шт.

9

87371082

SWITCH

Ether Start

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

1шт.

12

8605678

NOZZLE CAP

90 DEG

1шт.

13

378304A1

PLASTIC-RUBBER TUBE,0.125" OD

1219 mm (48 in)

1шт.

14

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

If Used

1шт.

15

829-1406

NUT,Hex, M6 x 1, Cl 10.9

If Used

1шт.
