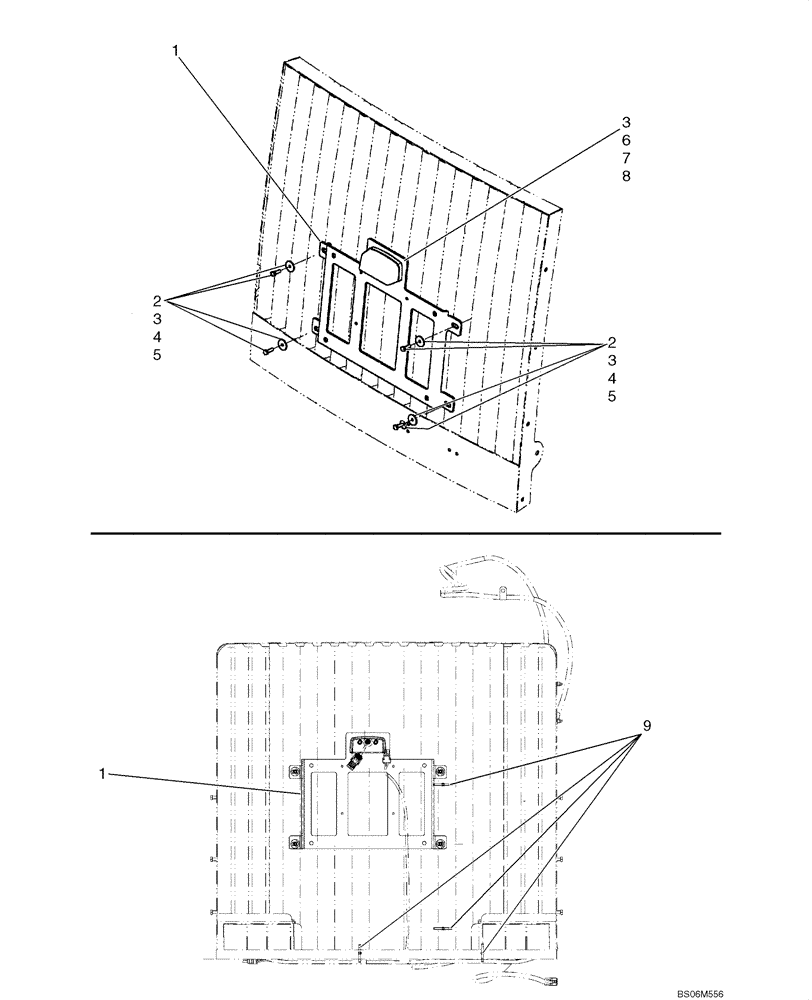

Запчасти Case 921E (04-25) - LICENSE PLATE LIGHT (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

NORTH AMERICAN MODELS ONLY

1шт.

1

193446A1

PLATE

License Plate

1шт.

2

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

120229A1

LIGHT

License Plate

1шт.

7

892-11006

LOCK WASHER,M6

2шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

4шт.
