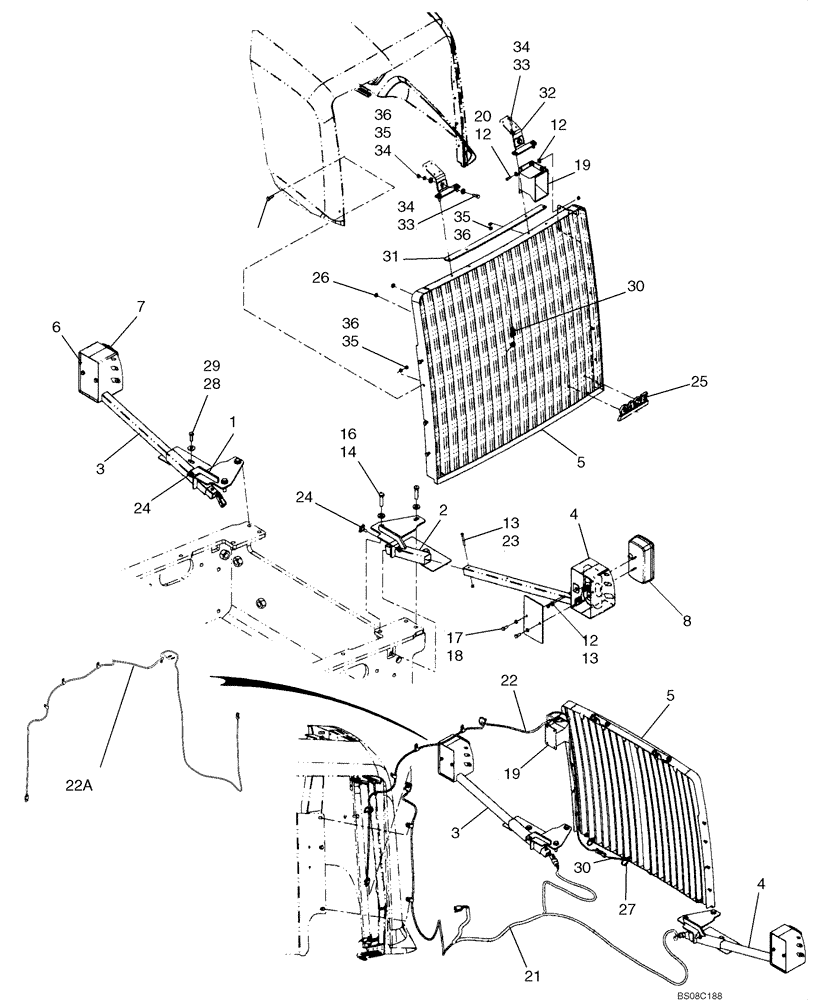

Запчасти Case 921E (04-19C) - MOUNTING - LAMPS, REAR COMBINATION / HORN - EUROPE - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

REAR LIGHT INSTALLATION, EUROPEAN MODELS ONLY - IF USED

1шт.

1

87544659

BRACKET

RH Light Support

1шт.

2

87534149

BRACKET

LH Light Support

1шт.

3

87544661

TUBE

RH Light Support

1шт.

4

87544662

TUBE

LH Light Support

1шт.

5

87647676

GRILLE

Rear

1шт.

6

NSS

NOT SOLD SEPARAT

COVER, Light Bracket

2шт.

7

87364651

LIGHT ASSY.,24V, 21W, Amber/Red

Rear RH; See Figure 04-20A

1шт.

8

87364652

LIGHT ASSY.,24V, 21W, Amber/Red

Rear LH; See Figure 04-20A

1шт.

12

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.

13

832-10406

NUT,M6 x 1, Cl 8

10шт.

14

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

19

D121972

ALARM

Back-Up

1шт.

20

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

21

87519479

WIRE HARNESS

Hood, Europe

1шт.

22

87534454

HARNESS

Back-Up Alarm; No Longer Available, Order 87690764 Harness, Ref. 22A

1шт.

22a

87690764

HARNESS

Back-Up Alarm and License Plate Light

1шт.

23

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

24

87566040

SCREW,Wing, M8 x 1.25 x 20mm

2шт.

25

186989A1

EMBLEM

Case Logo

1шт.

26

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4-7шт.

28

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

29

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

30

87647669

HARNESS

License Plate Light Jumper; If Used

1шт.

31

87653818

PLATE

Rear Grille

1шт.

32

87647667

BRACKET

, Serial Range: Grille-Hood

2шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

14шт.

34

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

35

892-11008

LOCK WASHER,8mm ID

14шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

14шт.
