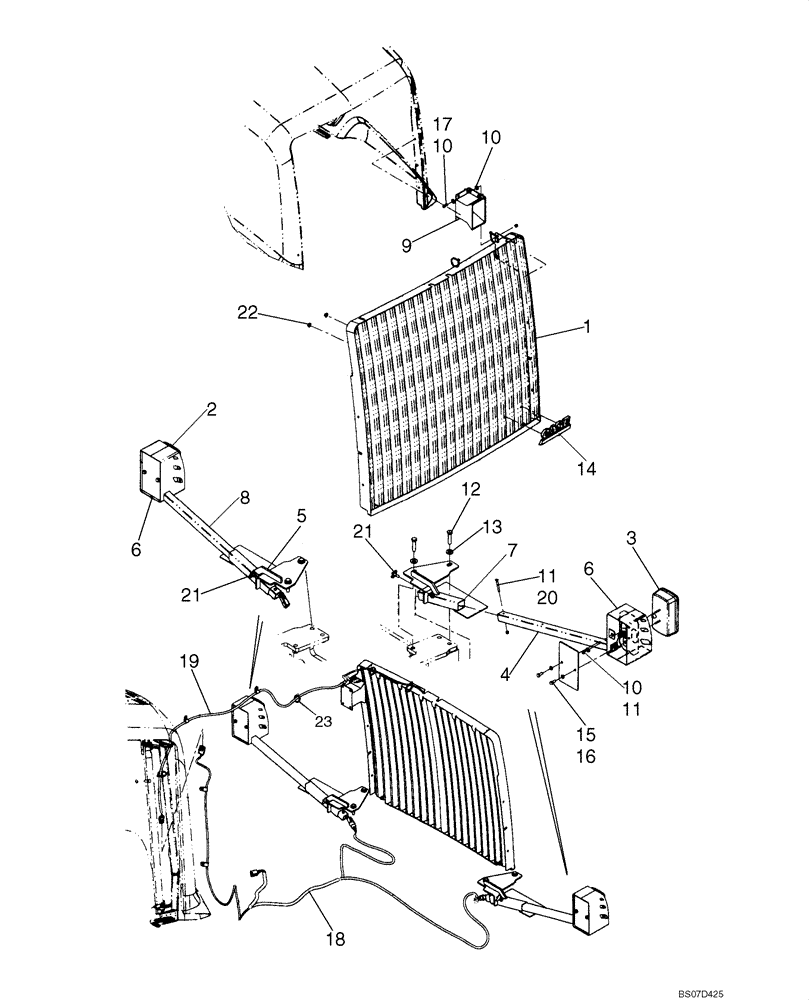

Запчасти Case 921E (04-19B) - MOUNTING - LAMPS, REAR COMBINATION / HORN - EUROPE (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

REAR LIGHT INSTALLATION, EUROPEAN MODELS ONLY

1шт.

1

87395897

GRILLE ASSY

1шт.

2

87364651

LIGHT ASSY.,24V, 21W, Amber/Red

Combination; Right Hand; See Figure 04-20A

1шт.

3

87364652

LIGHT ASSY.,24V, 21W, Amber/Red

Combination; Left Hand; See Figure 04-20A

1шт.

4

87544662

TUBE

LH Light Support

1шт.

5

87544659

BRACKET

RH Light Support

1шт.

6

NSS

NOT SOLD SEPARAT

COVER, Light Bracket

2шт.

7

87534149

BRACKET

LH Light Support

1шт.

8

87544661

TUBE

RH Light Support

1шт.

9

D121972

ALARM

Reverse

1шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.

11

832-10406

NUT,M6 x 1, Cl 8

10шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

14

186989A1

EMBLEM

Case Logo

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

17

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

18

87519479

WIRE HARNESS

Hood

1шт.

19

87534454

HARNESS

Hood/Reverse Alarm Jumper

1шт.

20

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

21

87566040

SCREW,Wing, M8 x 1.25 x 20mm

M8 Wing

2шт.

22

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7-8 Inch

3-4шт.
