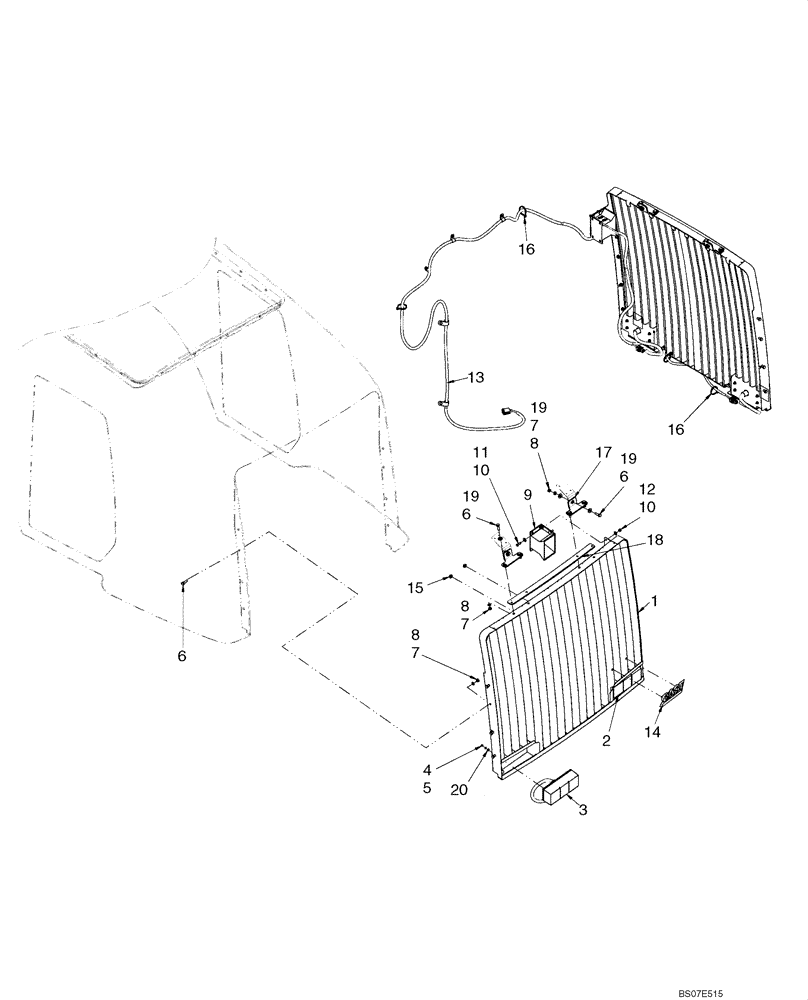

Запчасти Case 921E (04-19A) - MOUNTING - LAMPS, REAR COMBINATION / HORN - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

REAR LIGHT INSTALLATION, NORTH AMERICAN MODELS ONLY - IF USED

1шт.

1

87647675

GRILLE

Rear, For Mounting See Figure 09-15

1шт.

2

411778A1

LAMP, TAIL

LIGHT, TAIL Combination; Right Hand; See Figure 04-20

1шт.

3

411777A1

LAMP, TAIL

LIGHT, TAIL Combination; Left Hand; See Figure 04-20

1шт.

4

892-11005

LOCK WASHER,M5

8шт.

5

825-1405

NUT,M5, Cl 8

8шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

14шт.

7

892-11008

LOCK WASHER,8mm ID

14шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

14шт.

9

D121972

ALARM

Back-Up

1шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

11

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

12

832-10406

NUT,M6 x 1, Cl 8

4шт.

13

87534453

HARNESS

Hood and Rear Lighting; Replaces 87519477

1шт.

14

186989A1

EMBLEM

Case Logo

1шт.

15

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Black, 7-8 In. Nylon

4шт.

17

87647667

BRACKET

, Serial Range: Grill-Hood

2шт.

18

87653818

PLATE

Rear Grill

1шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

20

495-31022

WASHER,#10

8шт.
