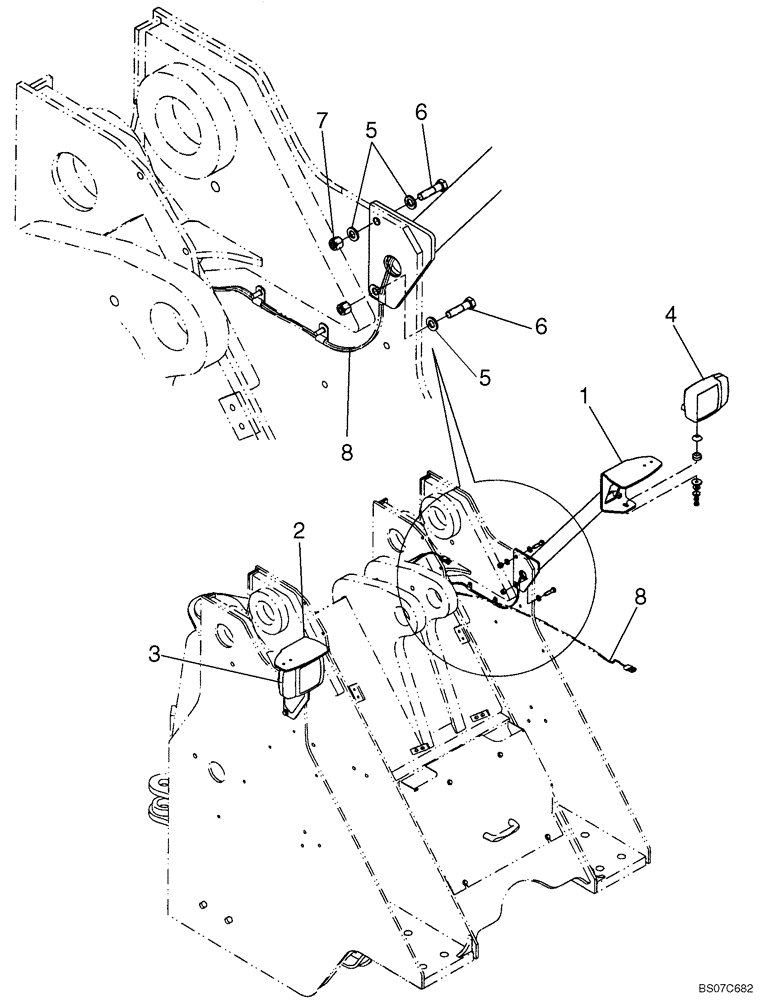

Запчасти Case 921E (04-18) - MOUNTING - LAMPS, FRONT (04) - ELECTRICAL SYSTEMS

1

87328540

BRACKET

Light Mounting, LH; Top Light Mounting Bracket Length 252 mm (9 - 15/16 in); If Used

1шт.

2

87328539

BRACKET

Light Mounting, RH; Top Light Mounting Bracket Length 252 mm (9 - 15/16 in); If Used

1шт.

3

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Combination RH; See Figure 04-18B

1шт.

4

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Combination LH; See Figure 04-18B

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

6

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

8

NSS

NOT SOLD SEPARAT

HARNESS, Supplementary; 87637681; No Longer Required

1шт.
