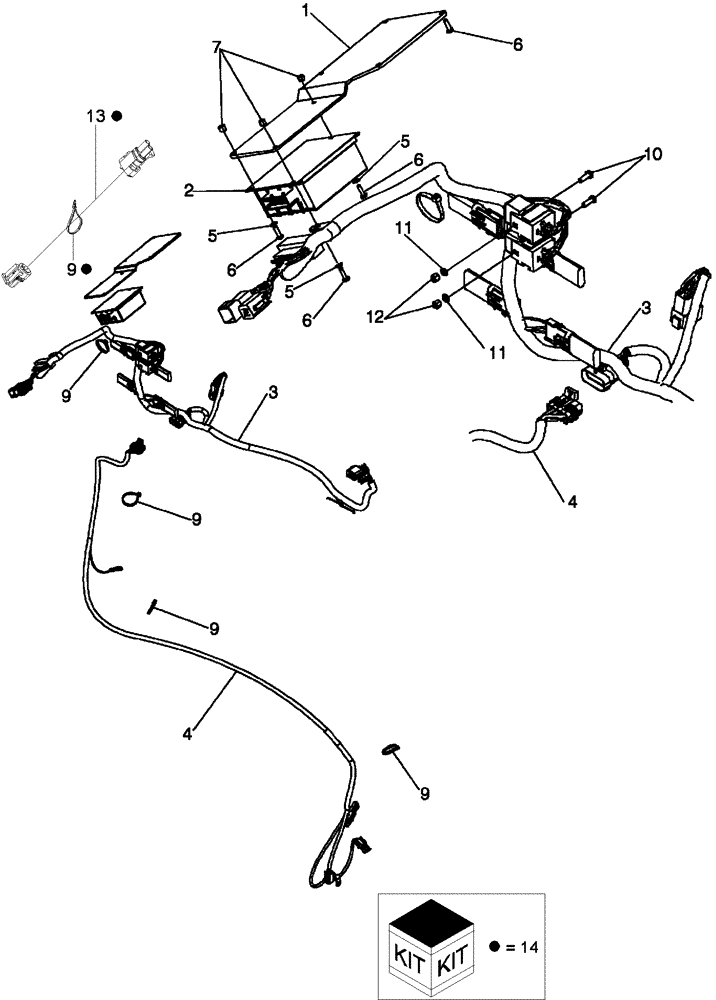

Запчасти Case 921E (04-17) - HARNESS - JOYSTICK STEERING (04) - ELECTRICAL SYSTEMS

1

84185169

BRACKET

BRACKET, Joystick Steering Controller; Replaces 87492813

1шт.

2

87486895

ECU

Joystick Steering

1шт.

3

84152428

WIRE HARNESS

Joystick To Controller

1шт.

4

87493786

WIRE HARNESS

Joystick Steering

1шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

6

840-1414

SCREW,Pan, Cl 4.8

7шт.

7

832-10404

NUT,M4 x 0.7, Cl 8.8

3шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

7шт.

10

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

12

832-10405

NUT,M5 x .8, Cl 8

2шт.

13

84222011

WIRE HARNESS

JSS, Serial Range: Jumper-Sensor

1шт.

14

84227716

WIRE HARNESS

Wire Harness, JSS Jumper, Inc Ref 9 and 13

1шт.
