(04-16) - ELECTRICAL - STEERING, AUXILIARY

Запчасти Case 921E (04-16) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

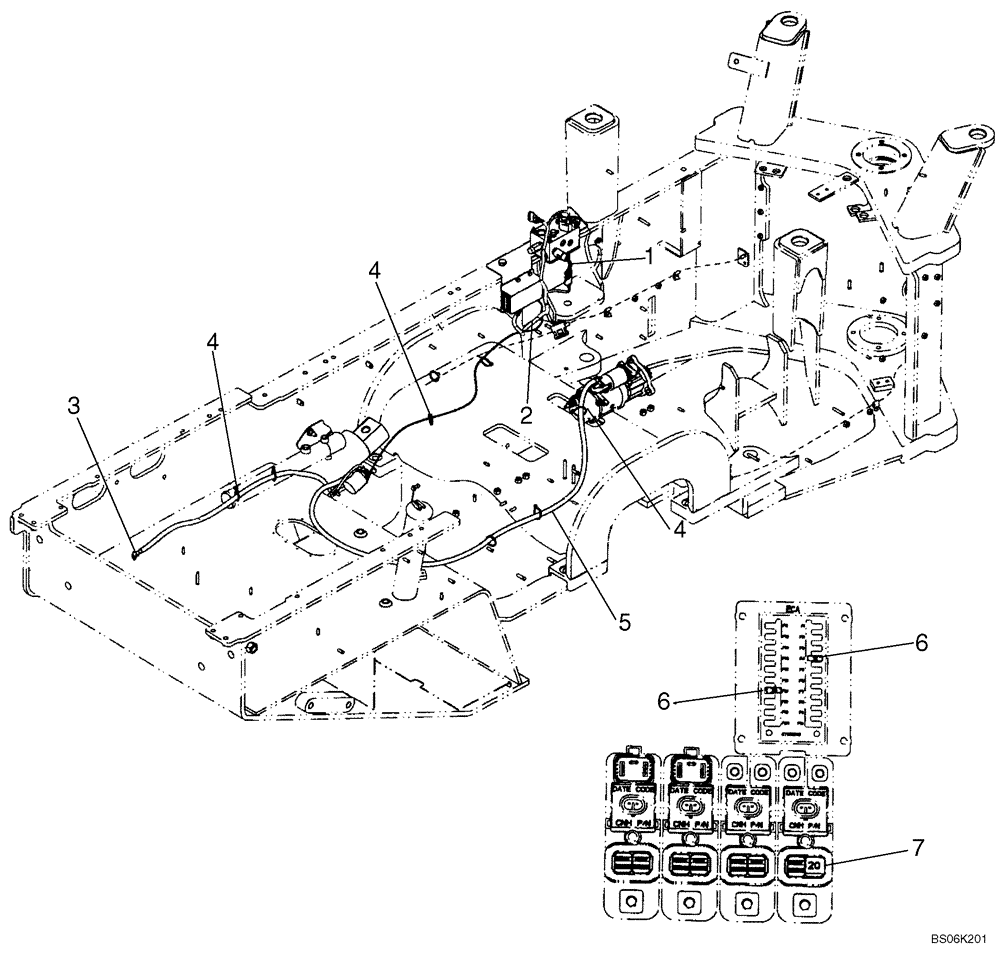

Схема запчастей Case 921E - (04-16) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS
5
7
3
2
4
4
4
6
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

398888A1

PRESSURE SWITCH

Auxiliary Steering Pressure Switch

1шт.

2

84217689

HARNESS

Secondary Steering Module, Start Serial: NAF208521

1шт.

2

87528047

WIRE HARNESS

Auxiliary Steering, Not Shown, See Fig. 04-16A, Serial Range: -NAF208521

1шт.

3

87533596

CABLE

Battery; Negative

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

8шт.

5

87528051

CABLE,2285mm L

Auxiliary Steering To Starter (B+)

1шт.

6

121411A1

FUSE,7.5A, Mini, Brown

2шт.

7

87327335

FUSE,20 Amp

32 VOLT 20 AMP

1шт.

Выбрано товаров: 8
