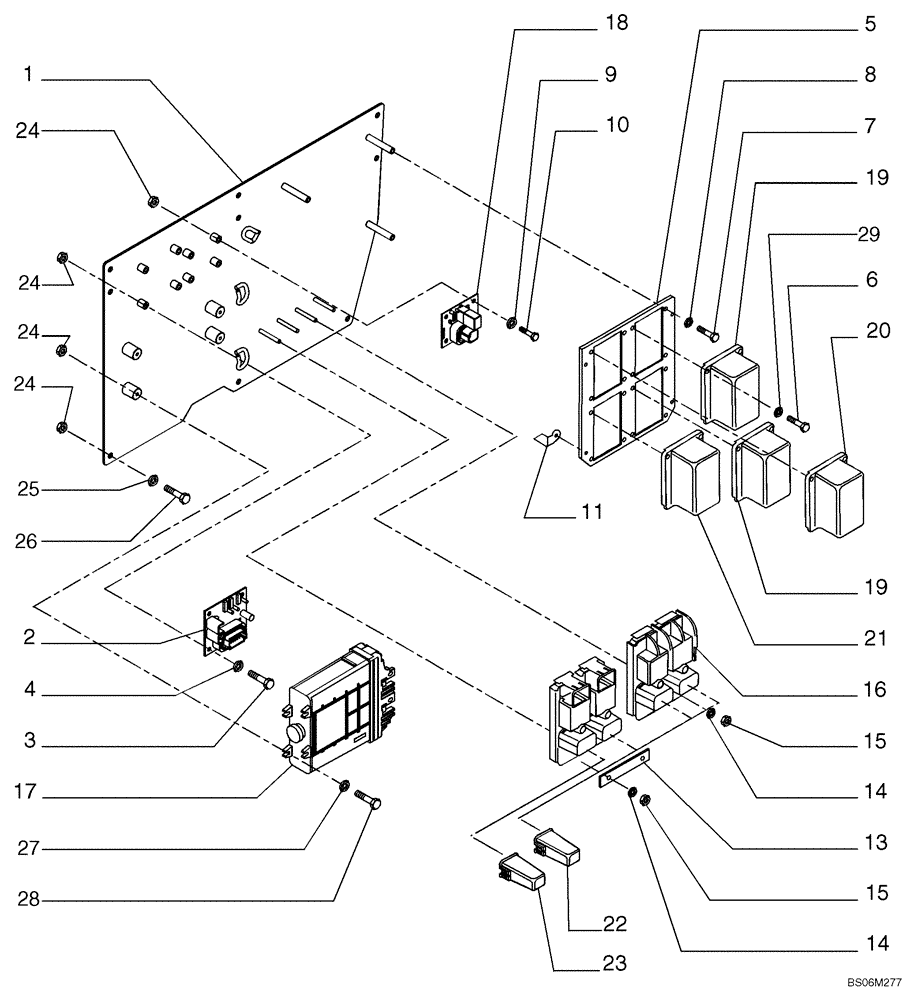

Запчасти Case 921E (04-12) - PANEL, CONTROL - FUSE AND RELAY MOUNTING (04) - ELECTRICAL SYSTEMS

1

87372241

PLATE

Right Console

1шт.

2

232364A1

FLASHER UNIT

1шт.

3

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

5

87341862

PLATE

Electrical Center

1шт.

6

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

16шт.

7

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

3шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

9

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

10

13276211

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

11

87318620

BAR

RTMR to PRM Bus

2шт.

12

87318627

MODULE

Not Illustrated

2шт.

13

87318612

BAR ASSY.

Input Status

1шт.

14

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

15

15896214

NUT,M6, Cl 8

2шт.

16

87315250

MODULE

PRM Single Power Delay

2шт.

17

84199355

MODULE

Transmission Control; Replaces 87515810, 87691460; See Figure 04-15

1шт.

84199355R

REMAN-MODULE

921E - WHEEL LOADER TIER 3 (NA/EU) (2/07-)

1шт.

84199355C

CORE-MODULE

Return Number

1шт.

18

87364605

TIMER

Power Off Delay

1шт.

19

87312843

FUSE BOX

See Figure 04-13

2шт.

20

87315249

FUSE BOX

See Figure 04-13

1шт.

21

87315248

RELAY

See Figure 04-13

1шт.

22

87327346

FUSE,40A, Green

40 A

3шт.

23

87327335

FUSE,20 Amp

20 A

1шт.

24

NSS

NOT SOLD SEPARAT

20шт.

25

NSS

NOT SOLD SEPARAT

9шт.

26

NSS

NOT SOLD SEPARAT

9шт.

27

NSS

NOT SOLD SEPARAT

4шт.

28

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

29

NSS

NOT SOLD SEPARAT

16шт.
