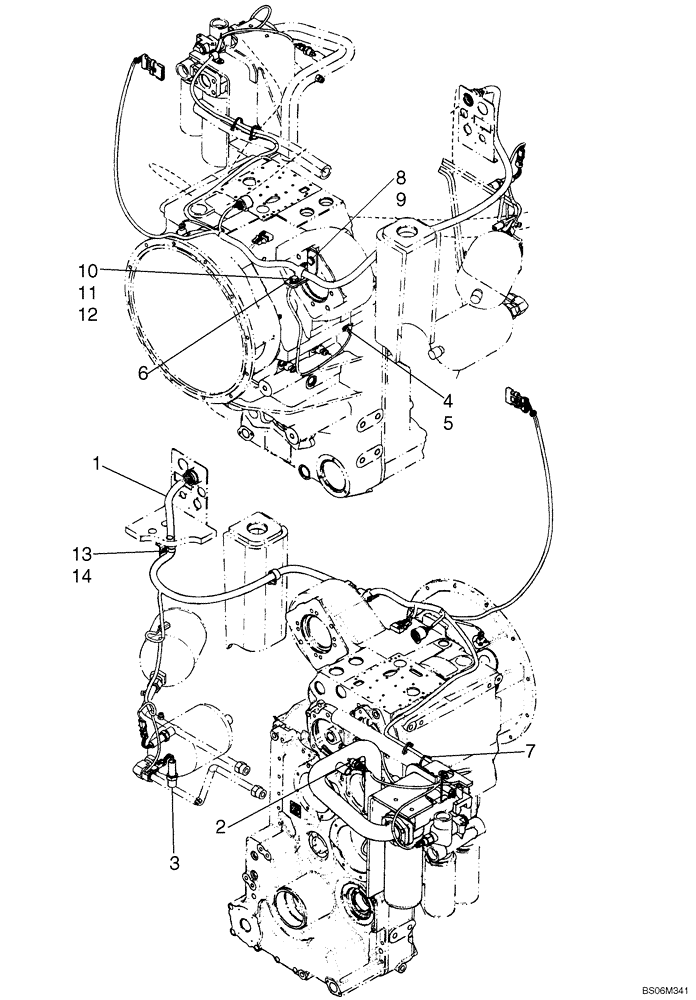

Запчасти Case 921E (04-07) - HARNESS - TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

87521454

WIRE HARNESS

Transmission

1шт.

2

321446A1

SENSOR

Engine Coolant

1шт.

3

377899A1

SWITCH

Redundant Brake

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

6

87515958

BRACKET

Tube Mounting

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

8

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

1шт.

9

11115331

SCREW,Hex, M14 x 25mm, Cl 10.9, Full Thd

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

12

829-1412

NUT,M12, Cl 10.9

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.
