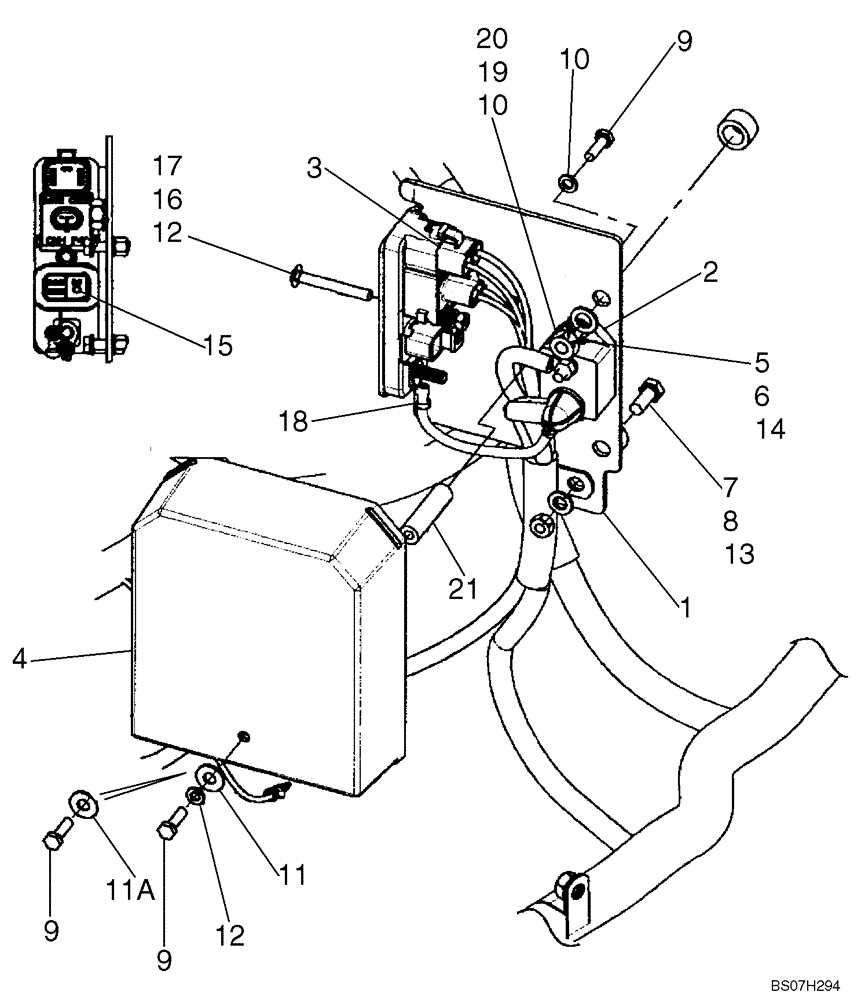

Запчасти Case 921E (04-06A) - HARNESS, REAR - RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

87373107

PLATE

Electrical Mounting

1шт.

2

87315269

BREAKER

105A Auto Reset; If Used

1шт.

3

87318627

MODULE

Power Relay

1шт.

4

L114612

COVER

Relay

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1-5шт.

11

495-21031

WASHER,1/4"

1шт.

11a

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

12

892-11006

LOCK WASHER,M6

1-2шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

14

D44696

BUSHING

Spacer; 1/2 Pipe x 1/2

2шт.

15

87327335

FUSE,20 Amp

32V 20A

1шт.

16

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

1шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

18

87398161

WIRE

Circuit Breaker To PRM; If Used

1шт.

19

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

If Used

2шт.

20

832-10406

NUT,M6 x 1, Cl 8

2шт.

21

253065A1

SPACER

1шт.
