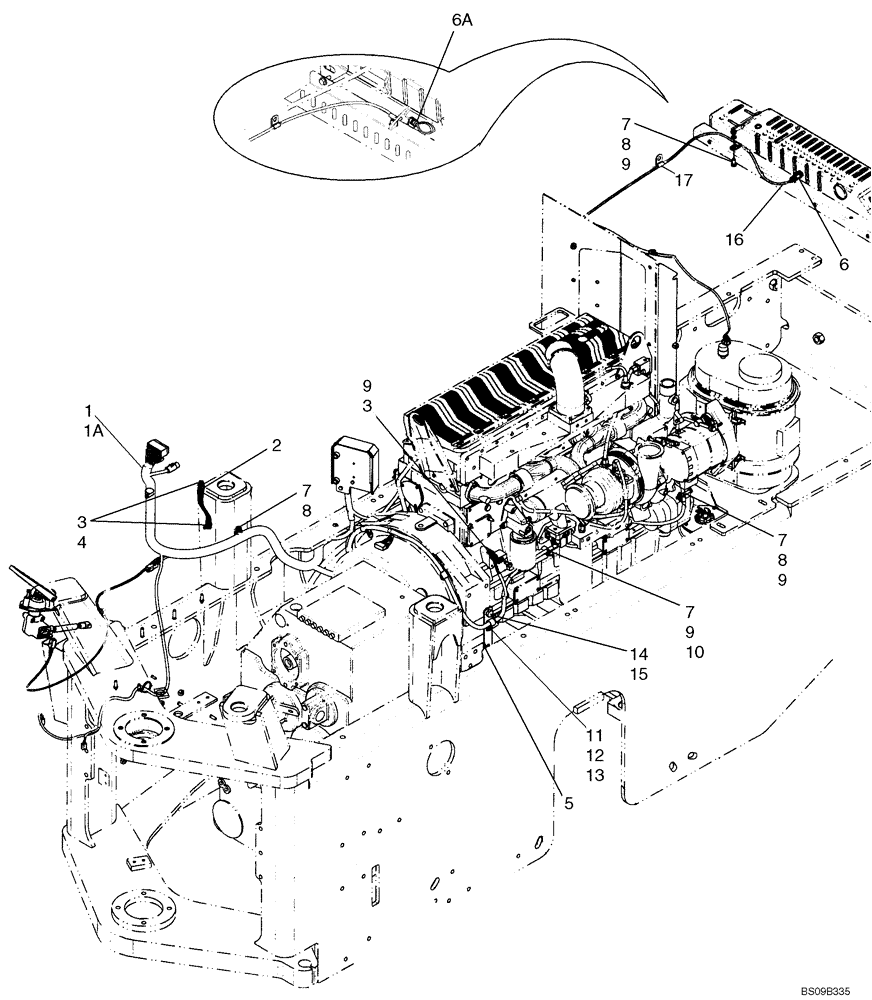

Запчасти Case 921E (04-06) - HARNESS, ENGINE (04) - ELECTRICAL SYSTEMS

1

87660169

WIRE HARNESS

Engine; Replaces 87608054; Used On Models With 87315269 105A Circuit Breaker; See Figure 04-06A; If Used

1шт.

1a

84174013

WIRE HARNESS

HARNESS, WIRE; Used On Models Without 87315269 105A Circuit Breaker; If Used

1шт.

2

L126051

GROUND STRAP

1шт.

3

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

3шт.

4

253347A1

NUT,Hex, M10 x 1.5

4шт.

5

451823A1

PLATE

1шт.

6

419792A1

SENSOR

Coolant Level; If Used, Machines Prior To P.I.N. N8F204487

1шт.

6a

87732880

WIRE HARNESS

HARNESS, WIRE, Coolant Sensor Jumper; If Used, P.I.N. N8F204487 And After

1шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3-4шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

2-3шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2-3шт.

10

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1-2шт.

15

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

If Used

1шт.

16

445786A1

WIRE HARNESS

Jumper; If Used

1шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

If Used

1шт.
