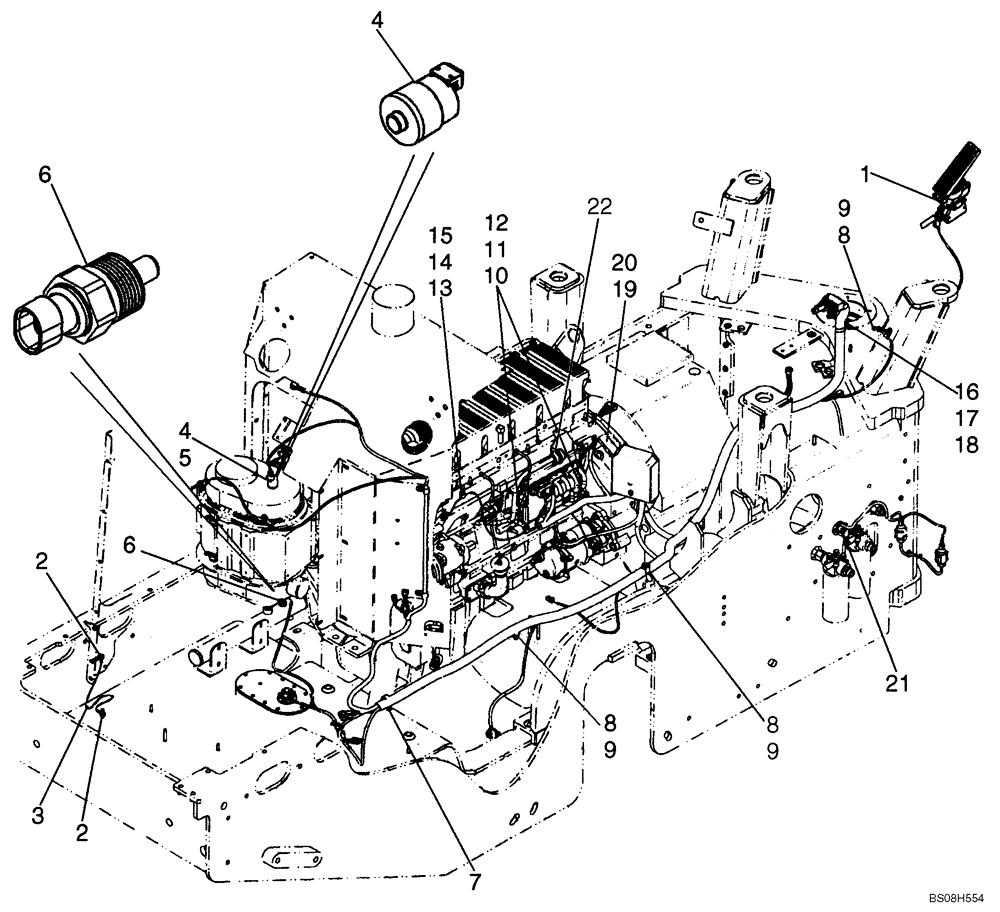

Запчасти Case 921E (04-05) - HARNESS, REAR CHASSIS - HARNESS, THROTTLE CONTROL (04) - ELECTRICAL SYSTEMS

1

87696524

THROTTLE

Engine; Replaces 87360870

1шт.

2

253347A1

NUT,Hex, M10 x 1.5

Brass

2шт.

3

448423A1

HARNESS

Ground Wire

1шт.

4

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

5

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

1шт.

6

321446A1

SENSOR

Hydraulic Fluid Temperature

1шт.

7

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

10

L126936

SPACER

2шт.

11

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

12

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

13

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

16

515-21302

CLAMP,1 3/16", Insul, 1/4" Bolt

1шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

3шт.

22

86991514

COVER

Dust

1шт.
