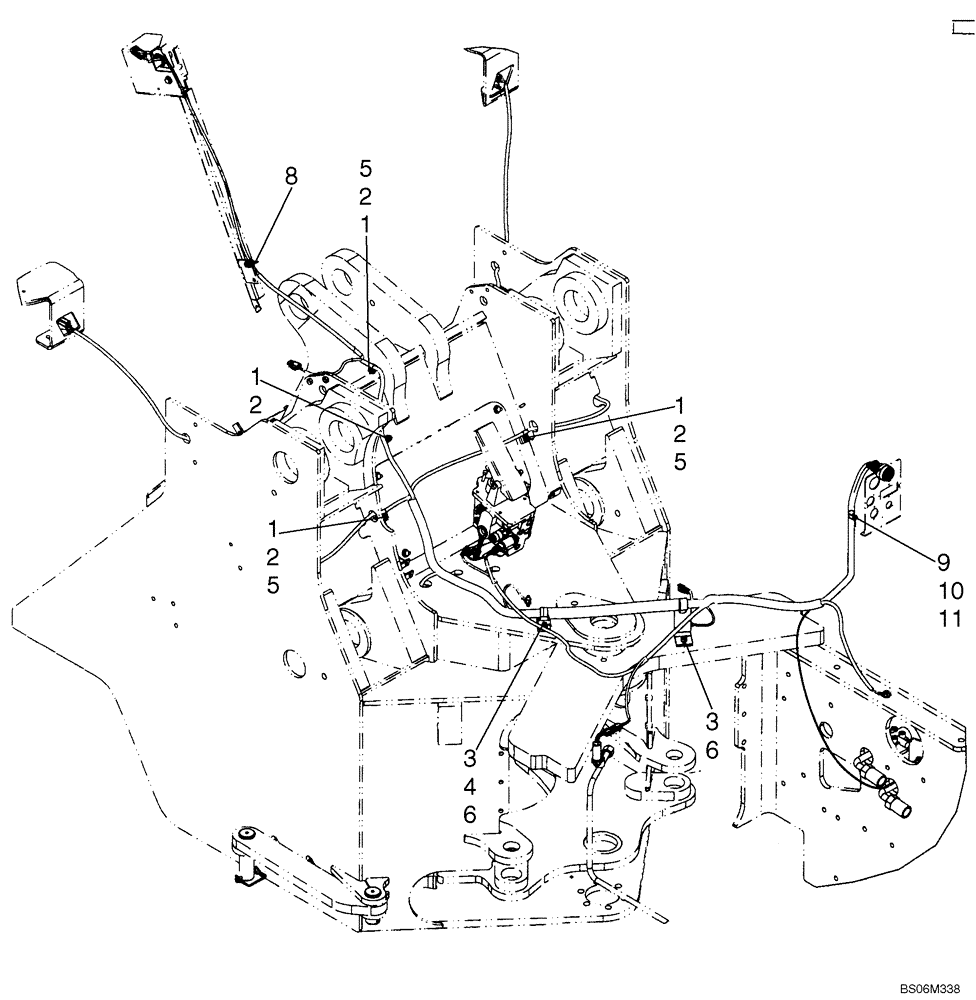

Запчасти Case 921E (04-04C) - HARNESS, FRONT - MOUNTING (04) - ELECTRICAL SYSTEMS

1

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

2

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces 895-18010, 895-11010 Washers Used On Some Models

3шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

7

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

Not Illustrated

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie; Not Illustrated

1шт.

9

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

10

832-10406

NUT,M6 x 1, Cl 8

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
