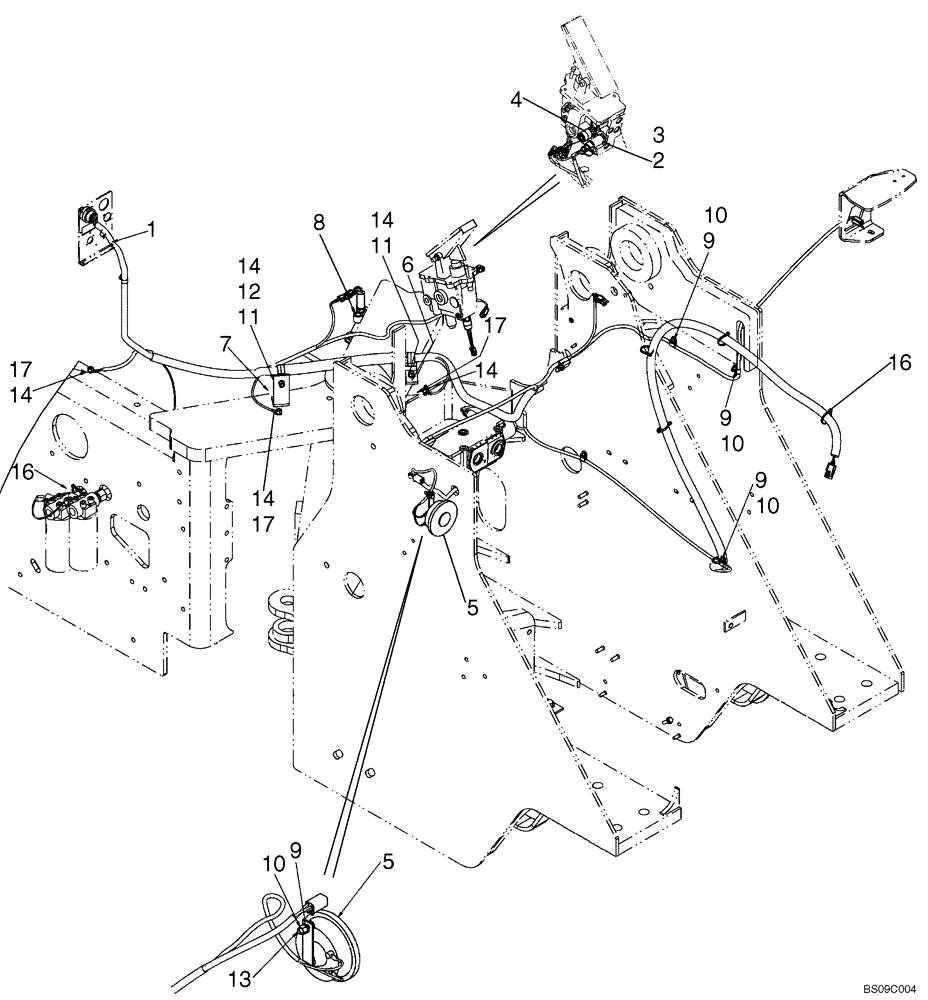

Запчасти Case 921E (04-04B) - HARNESS, FRONT - 84142018 - IF USED (04) - ELECTRICAL SYSTEMS

1

84142018

WIRE HARNESS

HARNESS, Front Chassis; Without Front Axle Temp. and Filter Sensor; Horn Mounted On Front RH Light Bracket; If Used

1шт.

2

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

Switch, Pressure; Warning Brake

1шт.

3

87728741

PRESSURE SWITCH

Warning; Brake Pressure

1шт.

4

84177015

PRESSURE SWITCH

Brake Light; Incl. O-Ring; Replaces 87307240 Pressure Switch Used On Some Models

1шт.

5

87382200

HORN

300 HZ; Mounted On Front RH Light Bracket

1шт.

6

87523210

BRACKET

1шт.

7

87525469

BRACKET

1шт.

8

87549589

SWITCH

Brake Declutch

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

8шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.
