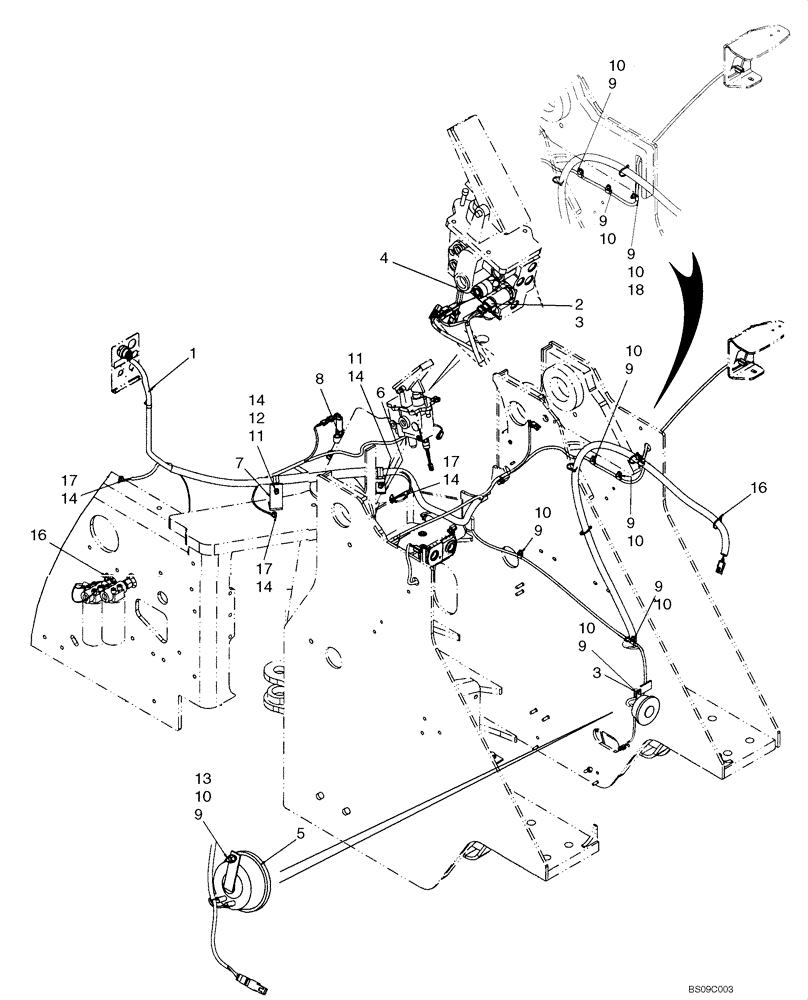

Запчасти Case 921E (04-04A) - HARNESS, FRONT - 87673187 - IF USED (04) - ELECTRICAL SYSTEMS

1

87673187

WIRE HARNESS

Front Chassis; With Front Axle Temp. and Filter Sensor; If Used

1шт.

2

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

Switch, Pressure; Warning Brake

1шт.

3

8605738

PRESSURE SWITCH

Warning; Brake

1шт.

4

84177015

PRESSURE SWITCH

Brake Light; Incl. O-Ring; Replaces 87307240 Pressure Switch Used On Some Models

1шт.

5

251444A1

ASSEMBLY

300 HZ, Serial Range: -NAF210349

1шт.

5

87382200

HORN

, Start Serial: NAF210350

1шт.

6

87523210

BRACKET

1шт.

7

87525469

BRACKET

1шт.

8

87549589

SWITCH

Brake Declutch

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7-9шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

7-9шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces 895-11010, 895-18010 Washers Used On Some Models

3шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

15

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

5-9шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

18

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

If Used

2шт.
