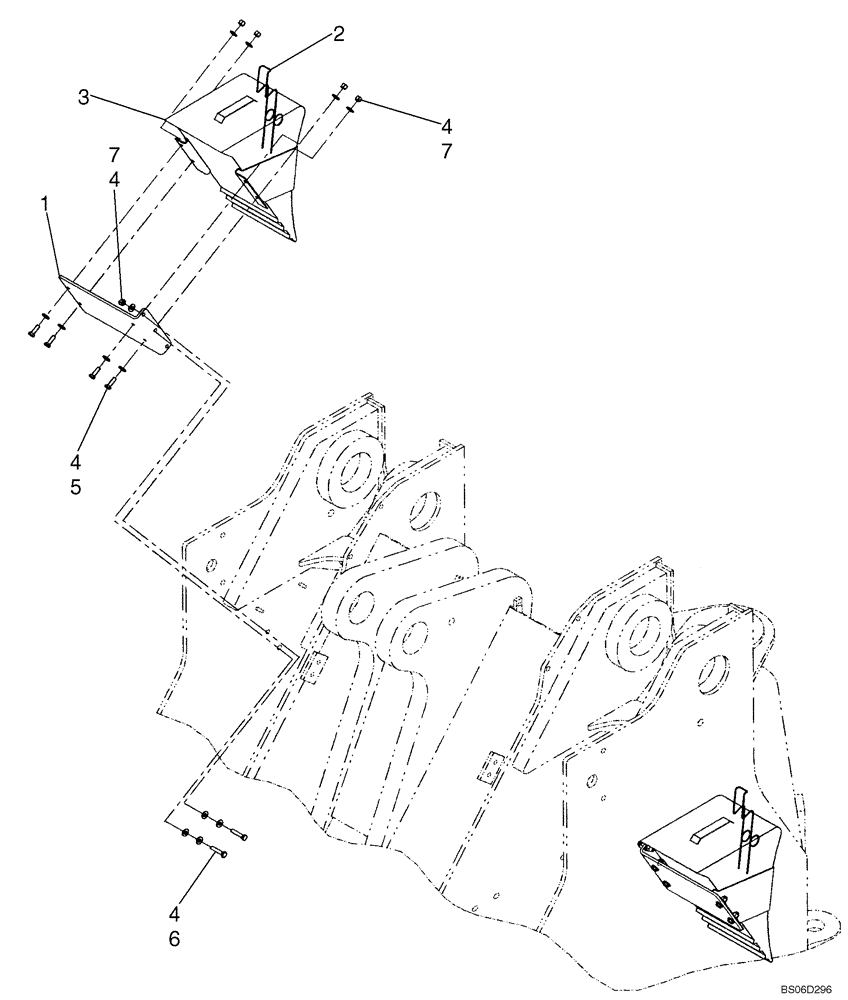

Запчасти Case 921E (09-95) - WHEEL CHOCK - EUROPE (09) - CHASSIS

REF

INSTRUCTION

EUROPEAN MODELS ONLY

1шт.

1

87438445

BRACKET

Wheel Chock

2шт.

2

337966A1

SUPPORT

2шт.

3

337965A1

WHEEL CHOCK

2шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

28шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

6

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.
