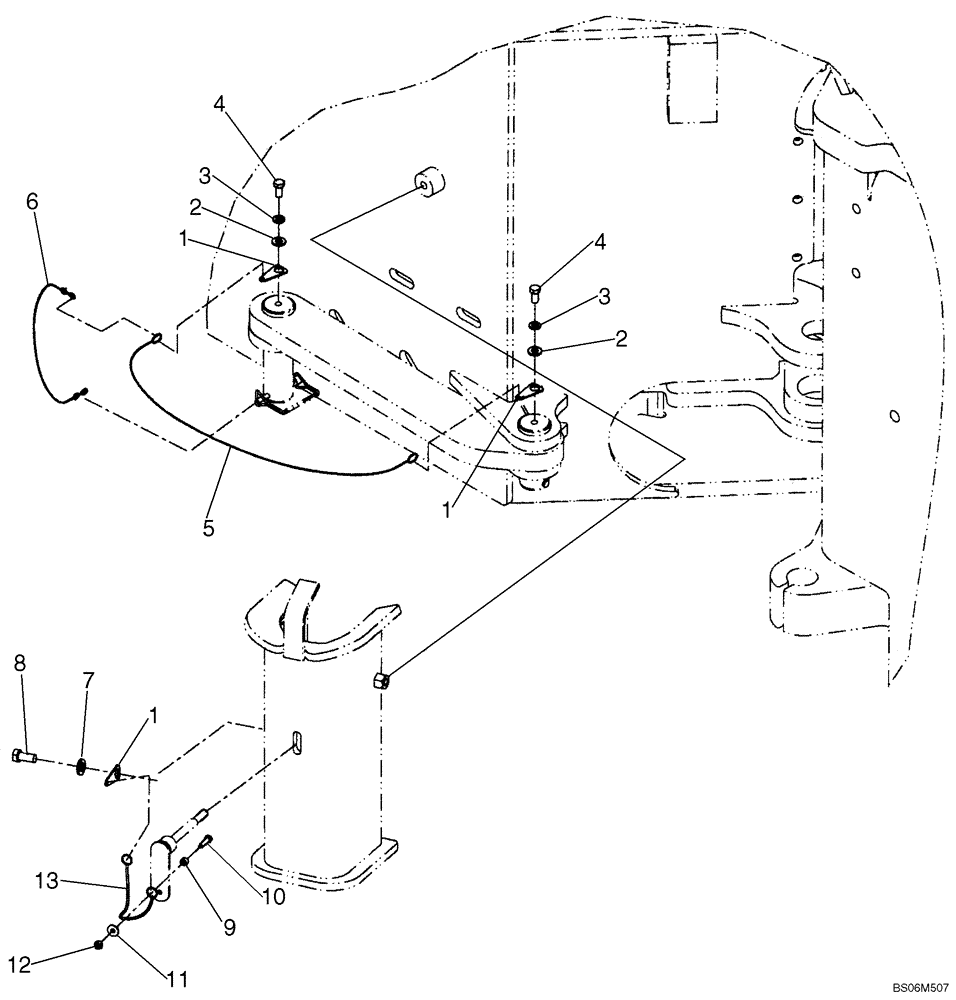

Запчасти Case 921E (09-92) - PIN TETHER MOUNTING (09) - CHASSIS

REF

INSTRUCTION

EUROPEAN MODELS ONLY

1шт.

1

L300295

RETAINER

3шт.

2

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

5

128307A1

CHAIN (CE)

1шт.

6

R47786

CHAIN (CE)

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

9

324286A1

SPACER

1шт.

10

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

1шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

411739A1

CHAIN

1шт.
