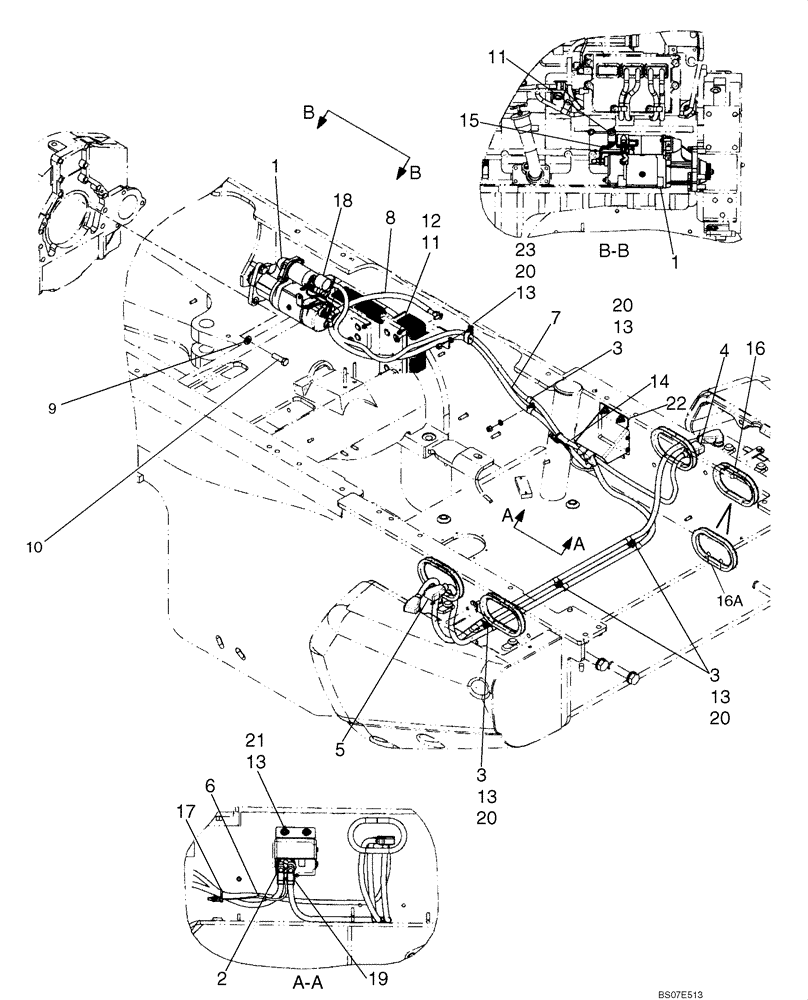

Запчасти Case 921E (04-01) - BATTERY - CABLES/STARTER (04) - ELECTRICAL SYSTEMS

1

87523673

STARTER MOTOR

Component Parts Not Serviced Seperately

1шт.

87523673R

REMAN-STARTER

921E Tier 3 (NA/EU) (2/07-)

1шт.

87523673C

CORE-STARTER

Return Number

1шт.

2

L126256

SWITCH

Master Disconnect

1шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

8шт.

4

87368215

CABLE

Battery

1шт.

5

87547713

NEG BATTERY CABLE

Negative To Disconnect; Replaces 87368216

1шт.

6

L127676

WIRE HARNESS

Disconnect

1шт.

7

87368217

CABLE,1440mm L

Negative To Disconnect

1шт.

8

87368219

CABLE

Ground

1шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

3шт.

11

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

12

253347A1

NUT,Hex, M10 x 1.5

3/8; Brass

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

14

87368220

CABLE

Positive To Starter

1шт.

15

434716A1

GROUND STRAP

Ground

1шт.

16

87367239

CONDUIT

Battery Cables; If Used

4шт.

16a

87642059

GROMMET

Battery Cables

4шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

18

357906A1

BOOT

Electrical

1шт.

19

L126713

BOOT

Electrical

3шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

22

87546240

HOUSING

Hood; Replaces 87518172

1шт.

23

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.
