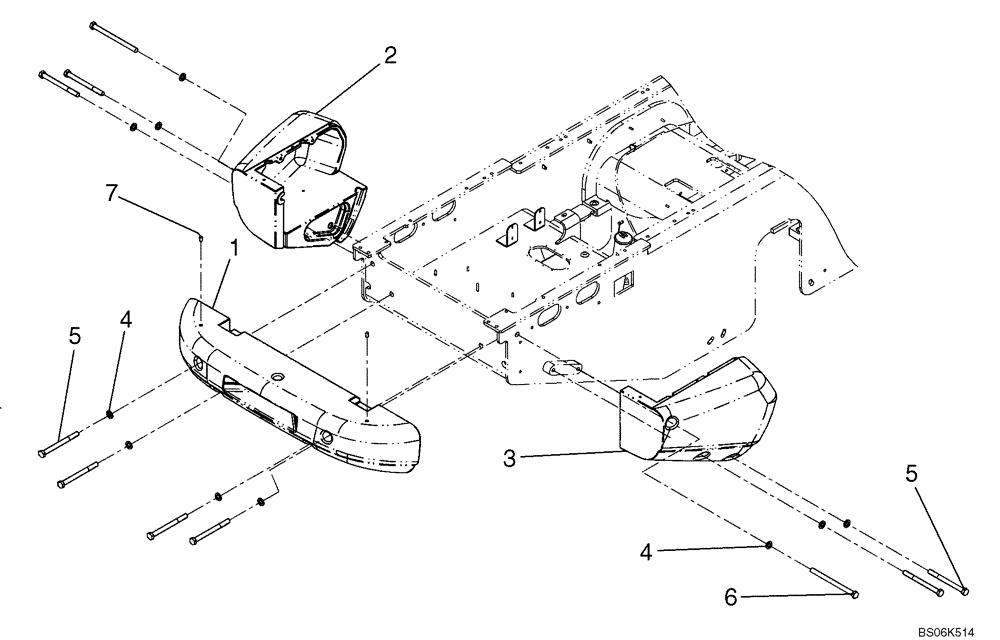

Запчасти Case 921E (09-88) - COUNTERWEIGHT/HITCH PIN (09) - CHASSIS

REF

INSTRUCTION

HEAVY DUTY COUNTERWEIGHTS AND HITCH PIN

1шт.

87516266

PIN,44.45mm OD

Hitch, Not Illustrated

1шт.

19-1041

LOCK PIN,7/16" x 2"

For Hitch Pin; Not Illustrated

1шт.

1

87337714

COUNTERWEIGHT

Center; Heavy Duty

1шт.

2

87337715

COUNTERWEIGHT

LH; Heavy Duty

1шт.

3

87337716

COUNTERWEIGHT

RH; Heavy Duty

1шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

10шт.

5

827-24270

BOLT,Hex, M24 x 3 x 270mm, Cl 10.9

8шт.

6

827-24330

BOLT,Hex, M24 x 3 x 330mm, Cl 10.9

2шт.

7

87308200

PLASTIC PLUG

2шт.
