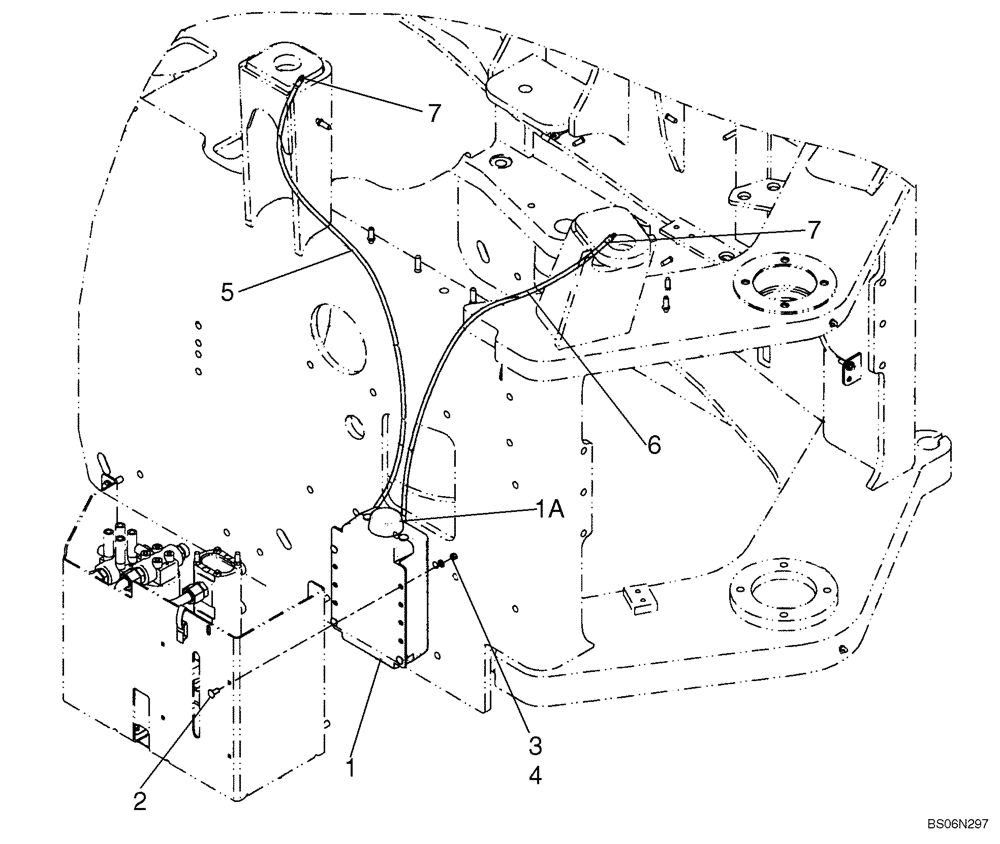

Запчасти Case 921E (09-86) - WINDSHIELD WASHER MOUNTING (09) - CHASSIS

REF

INSTRUCTION

USED ON MODELS WITH AXLE COOLER OPTION

1шт.

1

371185A1

RESERVOIR, WINDSHIEL,4.75L

Windshield Washer; Incl. Pumps and Cap

1шт.

1

48042633

PUMP,24V

2шт.

1a

87439461

CAP

Windshield Washer Tank

1шт.

2

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

M8 x 20; 8,8

4шт.

5

04-1056T1

HOSE

Front Windshield, Cut 2413 mm (95 in) From Bulk Hose 04-1056T1

1шт.

6

04-1056T1

HOSE

Rear Windshield, Cut 2083 mm (82 in) From Bulk Hose 04-1056T1

1шт.

7

84037530

VALVE

Washer Fluid; Replaces 324203A1

2шт.
