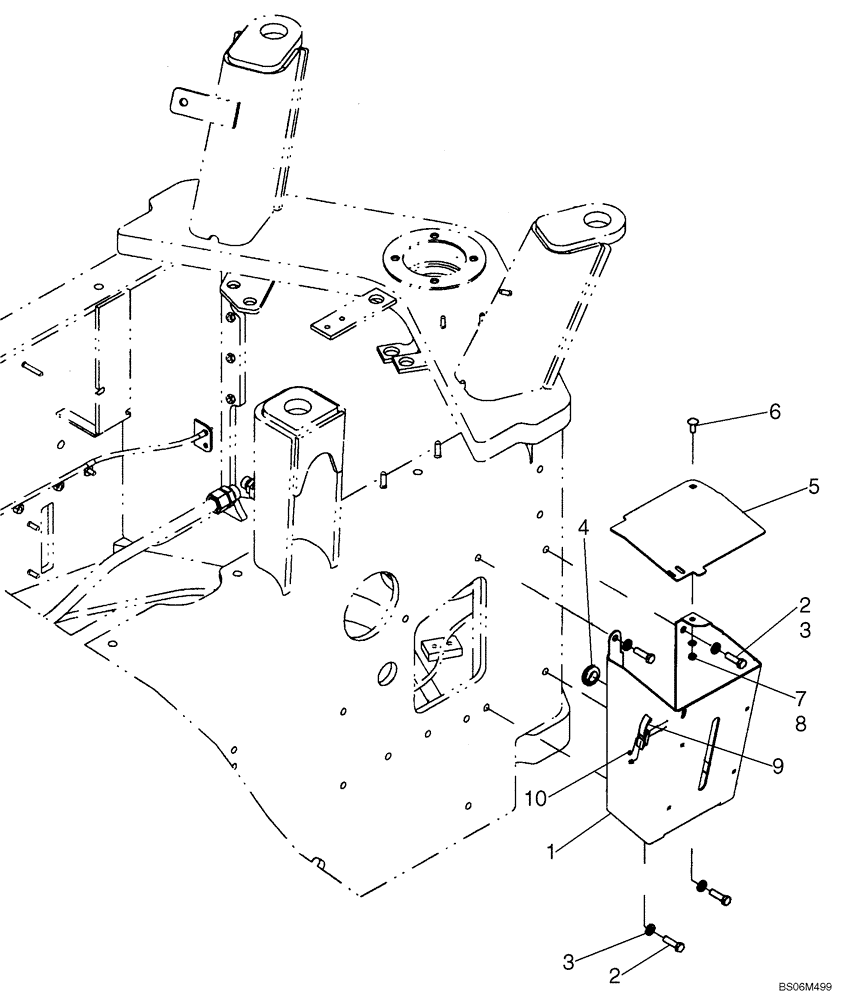

Запчасти Case 921E (09-85) - WINDSHIELD WASHER MOUNTING - COVER (09) - CHASSIS

1

87592938

PLATE

Washer Bottle; Gray

1шт.

2

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

2шт.

5

87592937

COVER

Washer Bottle; Gray

1шт.

6

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

1шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

60-4640T1

LATCH

2шт.

10

151-515

RIVET,Pop, .146" x .425"

1шт.
