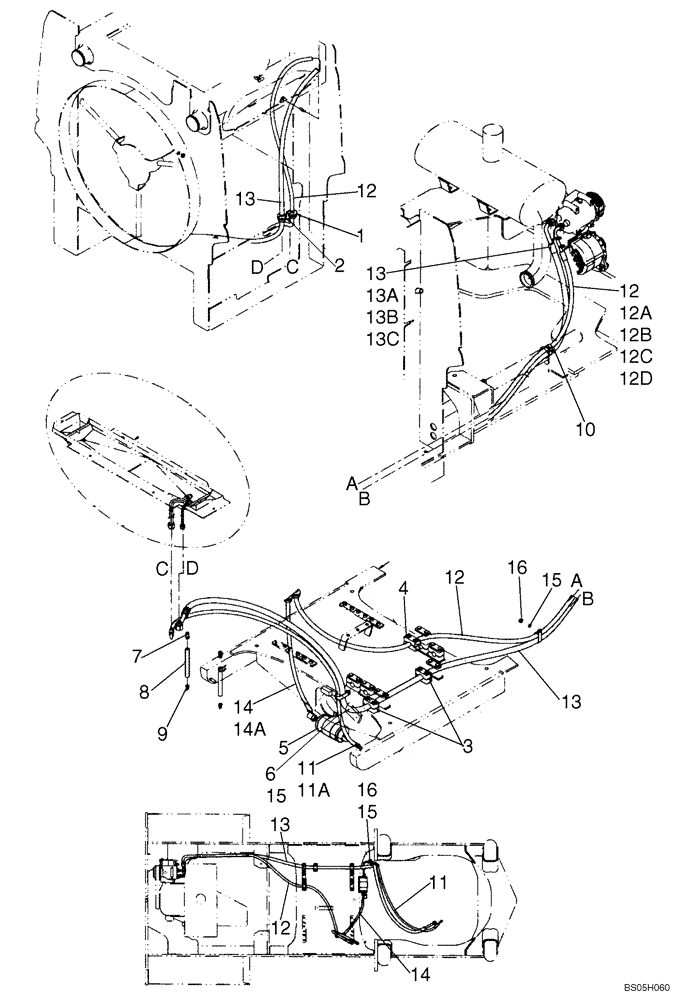

Запчасти Case 921E (09-80) - AIR CONDITIONING HOSES (09) - CHASSIS

1

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

2

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

3

367489A1

BLOCK

Mounting

2шт.

4

379374A1

BLOCK

Mounting

1шт.

5

REF

INSTRUCTION

A/C Dryer, See Figure 09-78

1шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

7

1250522C3

FITTING

Drain

2шт.

8

1977334C1

HOSE

610mm ( 24 in ); Cut From Bulk # 198091C2; Drain

2шт.

9

109239C2

CHECK VALVE

Drain

2шт.

10

31-1081

CLAMP

Double

3шт.

11

87440552

HOSE ASSY.

1460 mm ( 58 in ); Receiver-Drier To Cab; Incl. Ref. 11A

1шт.

11a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

12

87435181

A/C HOSE

3725 mm (147 in); Compressor To Condense; Incl. Refs. 12A - 12D

1шт.

12a

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

12b

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

12c

1250594C1

CORE

Valve

1шт.

12d

122554A1

CAP

1шт.

13

87327470

HOSE ASSY.

3425 mm (135 in); Cab To Compressor; Incl. Refs. 13A - 13C

1шт.

13a

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

13b

1250594C1

CORE

Valve

1шт.

13c

122553A1

CAP

1шт.

14

FAR8602469

HOSE

2000 mm (79 in); Condensor To Dryer; Incl. Ref. 14A

1шт.

14a

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

15

892-11008

LOCK WASHER,8mm ID

3шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
