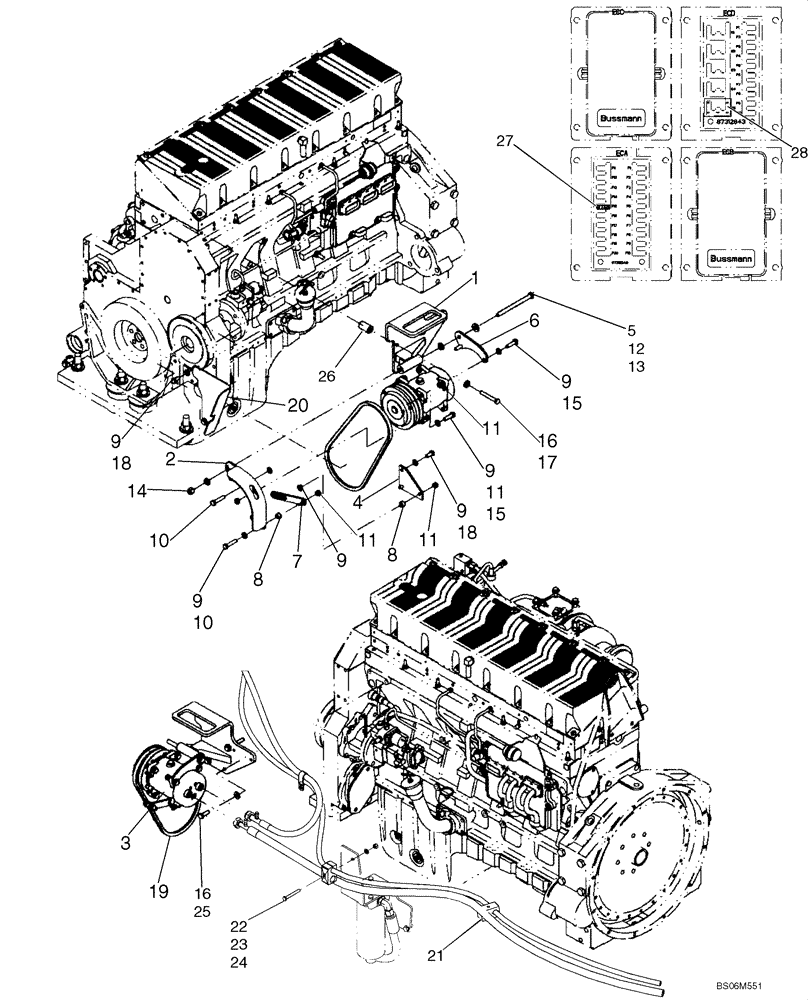

Запчасти Case 921E (09-79) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

1

431738A1

BRACKET

1шт.

2

431735A1

BRACKET

1шт.

3

86983967

AIRCOND. COMPRESSOR,24V, W/ Clutch, W/ Pulley

Incl. Refs. 3A, 3B; See Your Authorized Cummins Dealer for the Air Conditioning Drive Pulley

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

921E TIER 3 (2/07-)

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

3a

138886A2

CLUTCH

Compressor; Not Illustrated

1шт.

3b

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16; Not Illustrated

1шт.

4

90-3554T1

SUPPORT

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

6

87306658

BRACKET

1шт.

7

90-7587T1

ADJUSTING PLATE

Adjusting

1шт.

8

431737A1

SPACER

27/64 x 43/64 x 45/64 in

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

10

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

11

832-46410

NUT,M10 x 1.5, Cl 8

7шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

13

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

1шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

16

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

17

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

19

1250587C1

V-BELT,0.50" W

1шт.

20

431834A2

GUARD

1шт.

21

L115095

CLAMP

Double

2шт.

22

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

1шт.

23

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

25

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

26

90-7171T1

WASHER

2шт.

27

121411A1

FUSE,7.5A, Mini, Brown

1шт.

28

87312626

RELAY,24V

1шт.
