Артикул
Название
Примечание
Количество

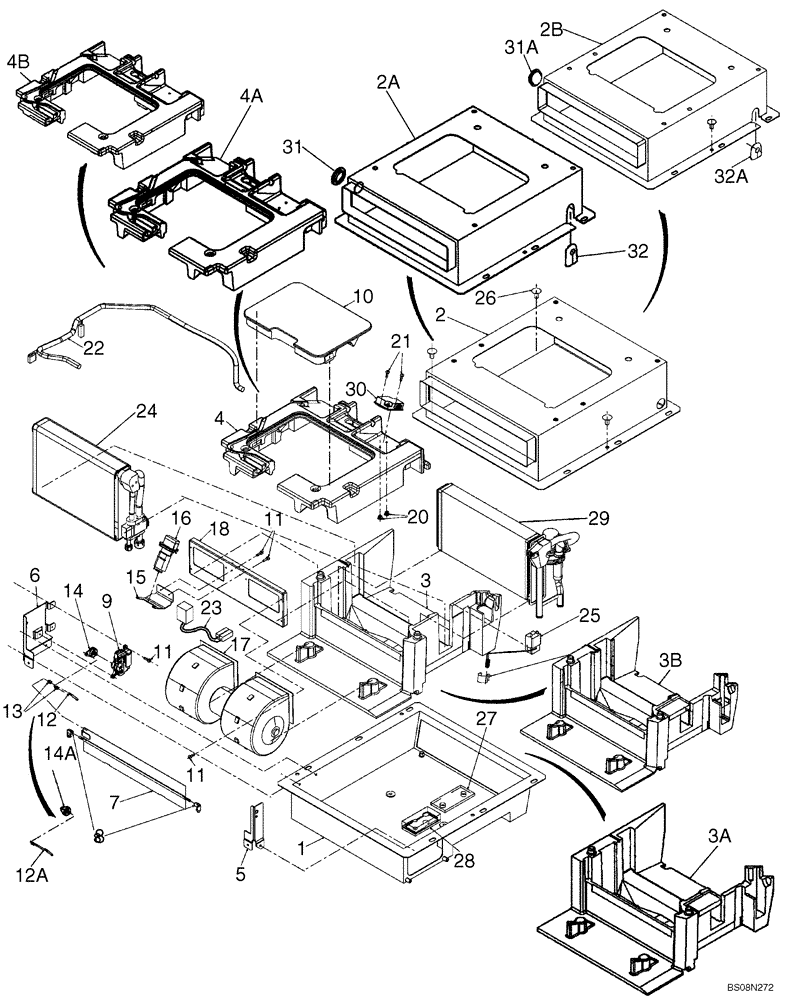

76303592
AIR CONDITIONER
HVAC Unit; Production Number Only, Order Component Parts; Incl. Refs. 1, 2, 3, 4, 5 - 12, 13, 14, 16 - 31; No Longer Available, Order Air Conditioner 87472474 and Jumper Harness 87727867
1шт.
87706152
AIR CONDITIONER
HVAC Unit; Production Number Only, Order Component Parts; Incl. Refs. 1, 2A, 3A, 4A, 5 - 12, 13, 14, 16 - 31, 32; No Longer Available, Order Air Conditioner 87472474
1шт.
1
87529453
BOX
Lower
1шт.
2
87529457
BOX
Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A
1шт.
2a
87738373
BOX
Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A
1шт.
2b
87472438
BOX
Upper
1шт.
3
87529458
BOX
Lower; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A
1шт.
3a
87738374
BOX
Lower; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A
1шт.
3b
87474170
SHIELD
Lower
1шт.
4
87529459
BOX
Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A
1шт.
4a
87738375
BOX
Upper; No Longer Available, Order Box 87472438, Box 87474170, Box 87472439, Grommet 87476710, and Plug 87472441, Refs. 2B, 3B, 4B, 31A, 32A
1шт.
4b
87472439
BOX
Upper
1шт.
5
NSS
NOT SOLD SEPARAT
Right Fastening Bracket
1шт.
6
NSS
NOT SOLD SEPARAT
Left Fastening Bracket
1шт.
7
87643958
FLAP
Recirculation
1шт.
8
87643957
BUSHING
For Recirculation Flap
2шт.
9
87528689
ACTUATOR
1шт.
10
87529462
COVER
Inspection Trapdoor
1шт.
11
NSS
NOT SOLD SEPARAT
Screw
13шт.
12
87643954
TIE-ROD
Used With 8529617 Lever, Ref. 14
1шт.
12a
87472436
TIE-ROD
Used With 87472437 Lever, Ref. 14A
1шт.
13
87643955
BUSHING
2шт.
14
87529617
LEVER
No Longer Available, Order 87472437 Lever and 87472436 Tie-Rod, Refs. 12A, 14A
1шт.
14a
87472437
LEVER
1шт.
18
NSS
NOT SOLD SEPARAT
Bracket
1шт.
19
87577360
SPRING CLIP
1шт.
20
NSS
NOT SOLD SEPARAT
Screw
2шт.
21
NSS
NOT SOLD SEPARAT
Screw
2шт.
22
87529485
CABLE
Heater; Used With Air Conditioner Unit 76303592; Used With 87719515 Climate Controller, See Figure 09-78; If Used
1шт.
22
87727866
CABLE
Heater; Used With Air Conditioner Units 87706152, 87472474; Used With 87719515 Climate Controller, See Figure 09-78; If Used
1шт.
23
NSS
NOT SOLD SEPARAT
Fan Cable
1шт.
22
84192332
WIRE HARNESS
CABLE, Used With 84169850 Climate Controller, See Figure 09-78; If Used
1шт.
24
87529493
EVAPORATOR
See Figure 09-77
1шт.
25
87529621
THERMOSTATIC SWITCH,Air Conditioning
1шт.
26
NSS
NOT SOLD SEPARAT
Plug
4шт.
27
87728778
SEAL
1шт.
28
87577361
FOAM INSULATION
Used With Air Conditioner 76303592
1шт.
28
87728777
SEAL
Used With Air Conditioners 87706152, 87472474
1шт.
29
87475866
RADIATOR
Heater; Replaces 87529289; See Figure 09-72
1шт.
30
87529487
SOLENOID
1шт.
31
87706366
CAP
Used With Air Conditioners 76303592, 87706152
1шт.
31a
87472441
PLUG
Used With Air Conditioner 87472474
1шт.
32
87706365
GROMMET
Cable; Used With Air Conditioner 87706152
1шт.
32a
87476710
GROMMET
Cable; Used With Air Conditioner 87472474
1шт.
33
84192329
AIR CONDITIONER
AIR CONDITIONER, HVAC Unit; Production Number Only, Order Component Parts; Incl. Refs. 1, 2B, 3B, 4B, 5 - 11, 12A, 13, 14A, 16 - 30, 31A, 32A; Replaces 87472474, Start Serial: NAF208536
1шт.
33
87472474
AIR CONDITIONER
HVAC Manual, Serial Range: -NAF208536
1шт.
Выбрано товаров: 48
