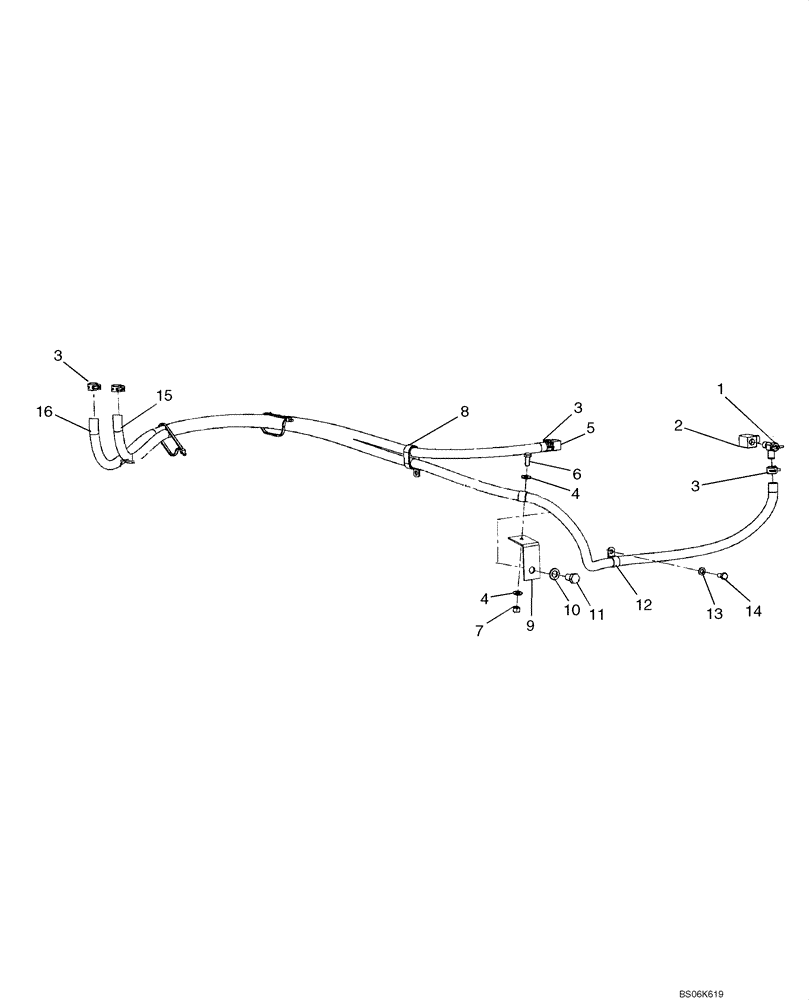

Запчасти Case 921E (09-74) - HEATING HOSES (09) - CHASSIS

1

301803R1

SHUT-OFF VALVE

90 Degree

1шт.

2

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

3

1954736C1

HOSE CLAMP,#24

4шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

8

L111928

CLAMP

1шт.

9

L129444

SUPPORT

1шт.

10

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

11

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

15

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

1шт.

16

436520A1

HEATER HOSE,15.88 mm ID x 1778.00 mm

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Not Illustrated

2шт.
