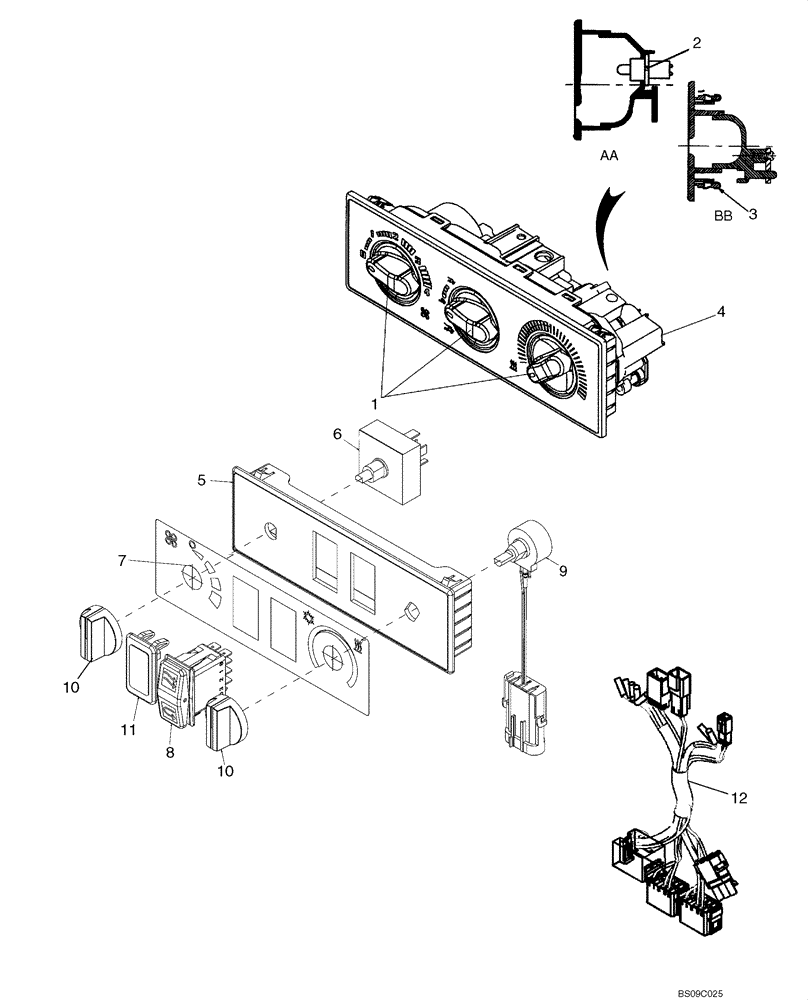

Запчасти Case 921E (09-73) - HEATER - CONTROL (09) - CHASSIS

87529536

CONTROL

ASSY. Manual Heater

1шт.

1

87529480

KNOB

Control

3шт.

2

87529474

CONTROL

Lighting Flange

1шт.

3

87720200

SPRING

Control Fixing

4шт.

4

NSS

NOT SOLD SEPARAT

BODY, CONTROL UNIT

1шт.

84169851

CONTROLLER

CONTROL, ASSY. Manual Heater; Incl. Refs. 5 - 11

1шт.

5

84169308

PANEL

Switch

1шт.

6

84169304

SWITCH

Blower

1шт.

7

84150190

DECAL

Heater

1шт.

8

84146279

SWITCH

Recirculation

1шт.

9

84169306

POTENTIOMETER,50,000 Ohm

Temperature Control

1шт.

10

1994720C1

KNOB

Control

2шт.

11

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.

12

84180274

WIRE HARNESS

Heater Adaptor; If Used

1шт.
