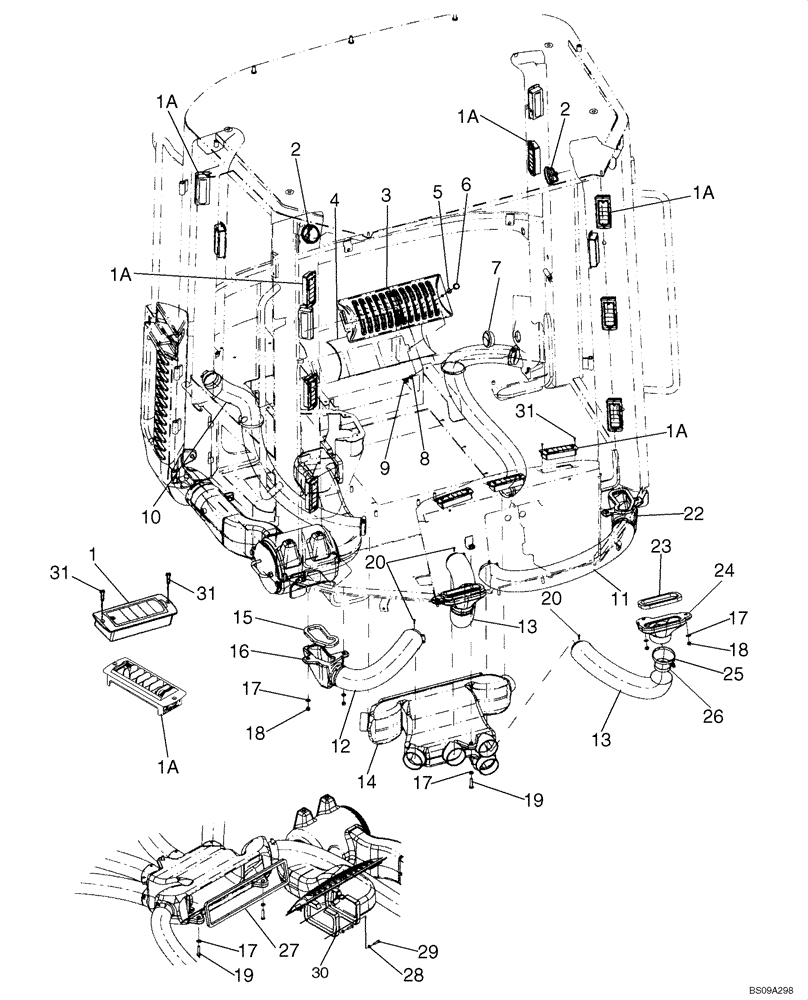

Запчасти Case 921E (09-69) - CAB - HEATER AND AIR CONDITIONING DUCTS (09) - CHASSIS

1

76079036

VENT

If Used

15шт.

1a

76079036

VENT

If Used

15шт.

2

76048980

VENT

DISCHARGE SPOUT

2шт.

3

84125367

COVER

Replaces 76303331 Cover Used On Some Models

1шт.

4

76303499

FILTER

, Serial Range: -NCF215710

1шт.

4

84389987

AIR FILTER,Square, 415mm L x 164mm W, Paper

Cab Recirculation, Start Serial: NCF215711

1шт.

5

87610804

RUBBER WASHER

D6.4 x 17

1шт.

6

76303321

PIN

1шт.

7

76303265

LOUVER

If Used

1шт.

8

76303319

WASHER

1шт.

9

76303320

CLIP

1шт.

10

76303505

HOSE,70mm ID x 1700mm L

1шт.

11

76303501

HOSE,80mm ID x 865mm L

1шт.

12

76303502

VENTILATION PIPE

Cut From Bulk P/N 87525059

1шт.

13

76303549

VENTILATION PIPE

Cut From Bulk P/N 87525059

2шт.

14

76303023

DUCT

1шт.

15

76303495

GASKET,10mm Thk

2шт.

16

87619957

AIR DUCT

Replaces 76303304

1шт.

17

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

M9 x 16 x 1.6, If Used

14шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

14шт.

18

825-1408

NUT,M8, Cl 8

If Used

8шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

If Used

8шт.

19

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

20

71485317

SCREW

If Used

4шт.

21

87619956

AIR DUCT

Replaces 76303302

1шт.

22

87619954

AIR DUCT

Replaces 76303303

1шт.

23

76303494

GASKET,13mm Thk

2шт.

24

87619955

AIR DUCT

Replaces 76303301

1шт.

25

87610848

GASKET

Cut From Bulk P/N 87665521

4шт.

26

214-1444

HOSE CLAMP,58.6mm - 82.5mm

4-12шт.

26

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

If Used

8шт.

27

76303496

GASKET,10mm Thk

If Used

1шт.

28

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

29

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

30

76303496

GASKET,10mm Thk

1шт.

31

265-17316

SELF-TAP SCREW,Phillips Drive, Oval HD, #6 - 20 x 1"

Replaces 760-14113, 87619755 Screws Used On Some Models

30шт.
