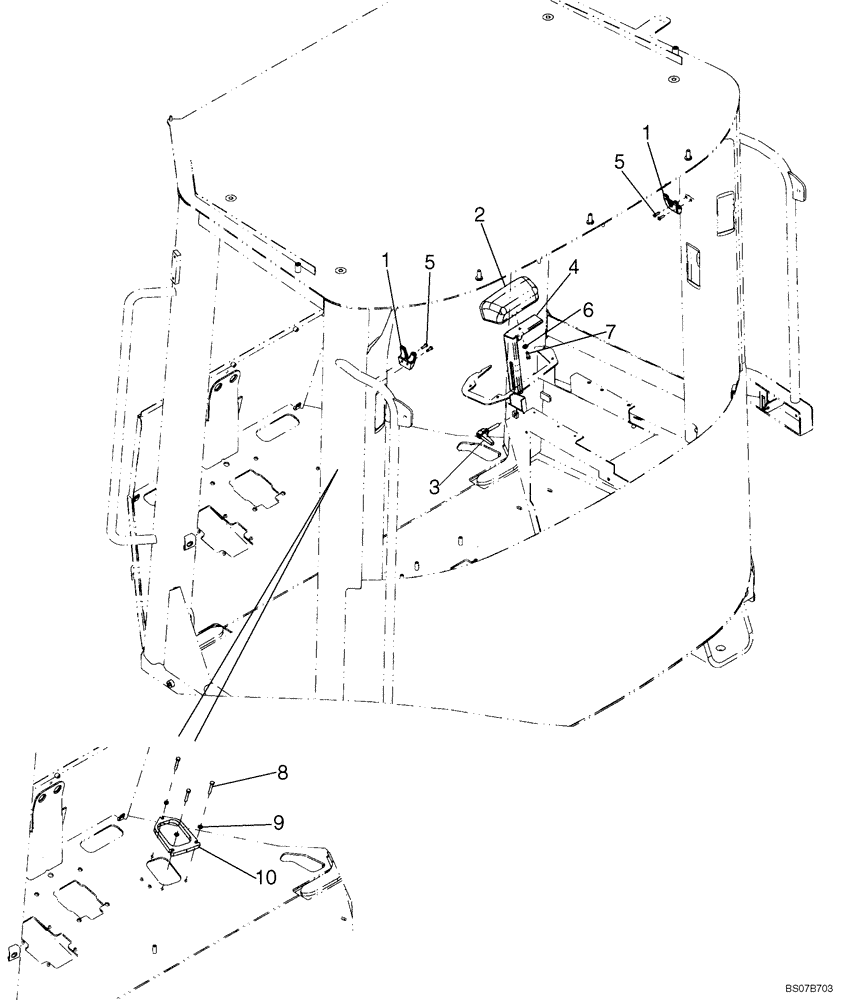

Запчасти Case 921E (09-65) - CAB - COMPONENTS (09) - CHASSIS

1

76067422

COAT HOOK

2шт.

2

76303022

ARMREST

1шт.

3

76303338

HANDLE

1шт.

4

87696480

SUPPORT

Armrest, Replaces 76303337

1шт.

5

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

If Used

4шт.

5

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

If used

4шт.

6

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

1шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

8

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

3шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

10

87516291

PLATE

Throttle Spacer

1шт.
