Запчасти Case 921E (09-58) - CAB - EXTERIOR TRIM (09) - CHASSIS

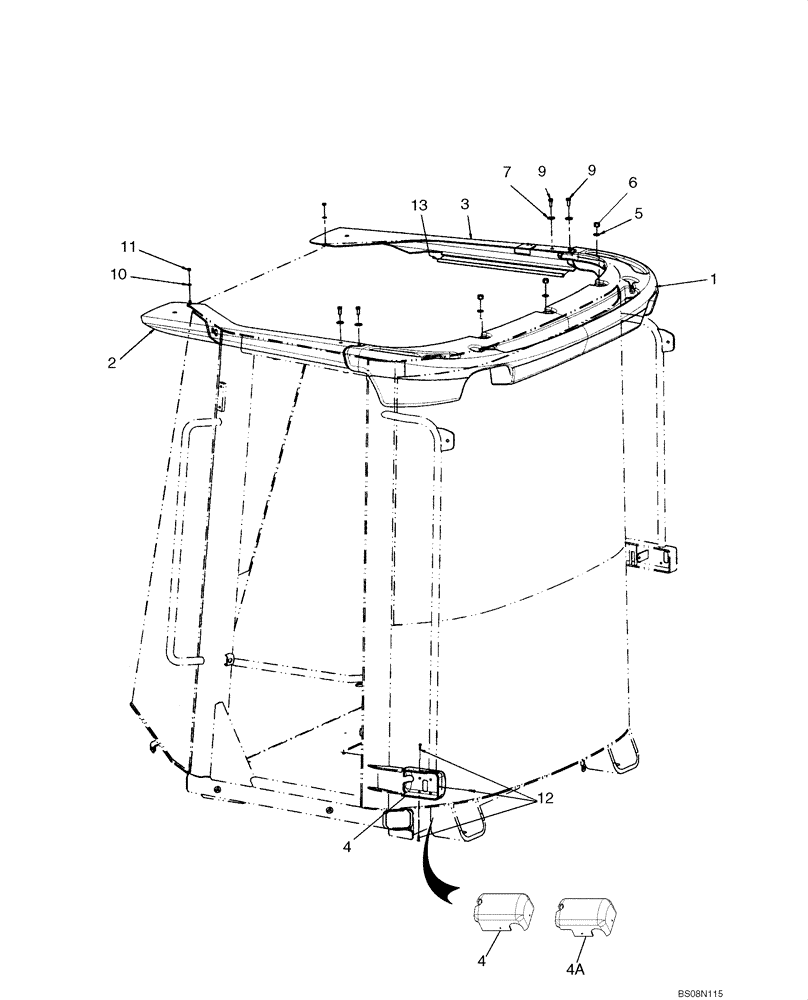

Схема запчастей Case 921E - (09-58) - CAB - EXTERIOR TRIM (09) - CHASSIS
9
2
9
4
4
4a
7
12
13
1
5
11
3
6
10

Артикул

Название

Примечание

Количество

1

76303024

DOOR SILL MOULDING

Rear

1шт.

2

76303194

DOOR SILL MOULDING

Left Front

1шт.

3

76303195

DOOR SILL MOULDING

Right Front

1шт.

4

76303025

COVER

Door Latch; No Longer Available, Order 87493705 Cover, Ref. 4A

1шт.

5

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

M11 x 20 x 2; Replaces Washer 895-11010, M10 x20 x 2 Used On Some Models

3шт.

4a

87493705

COVER

Door Latch

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

Replaces Nut 87664047, M10 Cl8, Prev Torq Used On Some Models; Replaces Nut 829-4410, Thin, M10 x 1.5, Cl 05 Used On Some Models

3шт.

7

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

M9 x 24 x 2; Replaces Washer 895-25008, M8 x 20 x 1.6 Used On Some Models

4шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Replaces Bolt 614-8025, Hex, M8 x 25, 8.8 Used On Some Models; Replaces Bolt 16043624, Hex, M8 x 25, 8.8, Full Thd Used On Some Models

2шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Replaces Bolt 614-8020, Hex, M8 x 20, 8.8 Used On Some Models

2шт.

10

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6.6 x 12 x 1.6; Replaces Washer 895-11006, M6 Used On Some Models

2шт.

11

15896214

NUT,M6, Cl 8

Replaces Nut 825-1406 Used On Some Models

2шт.

12

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

Replaces Screw 540-717, Cross Pan Hd M4 x 8 Used On Some Models; Replaces Screw 87664046, M4 x 8 Used On Some Models

3шт.

12

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

If Used

3шт.

13

87720305

MOLDING

Cut 480 mm (18 - 29/32 in) From Bulk Molding 26-258

2шт.

Выбрано товаров: 15
