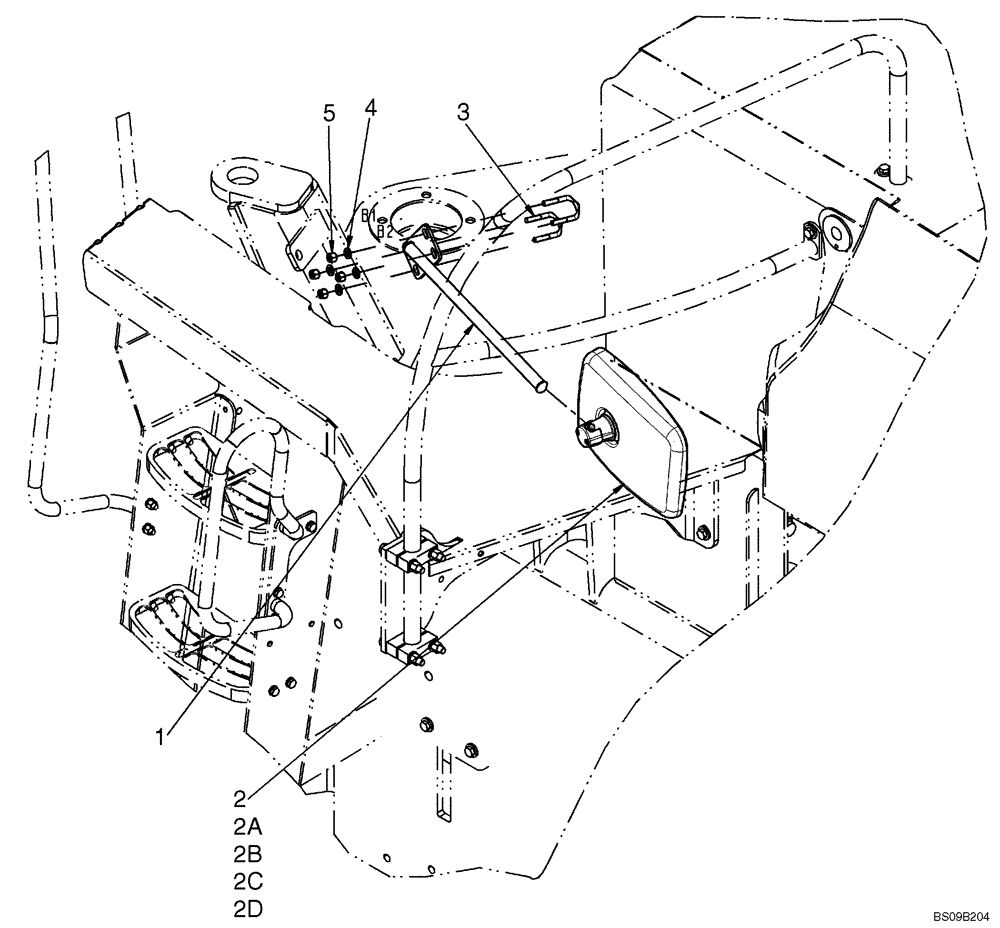

Запчасти Case 921E (09-53A) - CAB - MIRRORS - EUROPE (P.I.N. N8F206417 AND AFTER) (09) - CHASSIS

1

84168895

SUPPORT

Mirror

1шт.

2

87350494

MIRROR ASSY.,240mm x 329mm

Inc. 2A - 2D

1шт.

2a

82015243

REPLACEMENT MIRROR

1шт.

2b

82035218

MIRROR,300mm x 200mm

Lens

1шт.

2c

87531094

BRACKET

1шт.

2d

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

3

253410A1

U-BOLT,M10 x 1.5 x 67mm

BOLT "U"

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
