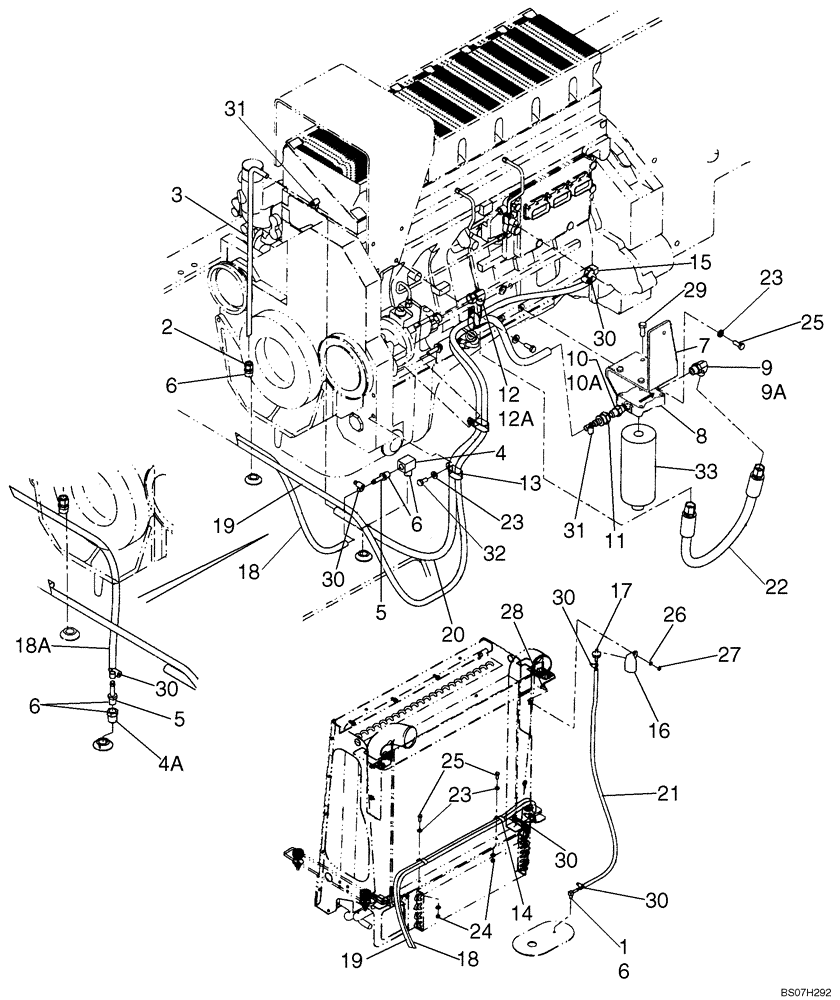

Запчасти Case 921E (03-01) - FUEL LINES (03) - FUEL SYSTEM

1

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

2

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1шт.

3

L128379

FUEL TUBE,12.7 mm OD x 575, 64 mm L

Fuel Tank Supply

1шт.

4

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

If Used

1шт.

4a

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

If Used

1шт.

5

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

6

345-87

SEALANT

592

1шт.

7

87555329

BRACKET

Fuel Filter

1шт.

8

103796A1

SUPPORT

Head Filter

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 9A

3шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 10A

2шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

31-3129

ADAPTER

7/8

1шт.

12

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Incl. 12A

1шт.

12a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

L101181

CLAMP,0.75" D Clamping pipes x 2

Double 19.1 Dia.

3шт.

14

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

15

443934A1

FITTING

1шт.

16

186814A1

CAP

Fuel Tank Vent

1шт.

17

T103750

BREATHER

Breather

1шт.

18

31-2940

FUEL HOSE

1422 mm (56 in), Cut From 32-12X; Tank To Cooler, If Used

1шт.

18a

87450701

HOSE

1213 mm (47 - 3/4 in), Tank To Cooler, If Used

1шт.

19

443941A1

HOSE,9.50 mm ID x 2870.00 mm

Fuel Return, Cut from Bulk, Engine To Cooler

1шт.

20

417252A1

HOSE

1575 mm (62 in), Fuel Supply, Cut From 32-80

1шт.

21

241174A1

PIPE

1270 mm (50 in); Cut From 32-12X, Breather Hose

1шт.

22

418852A1

HOSE ASSY.

684 mm (27 in), Fuel Injector to Fuel Filter

1шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

7шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

26

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

28

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

1шт.

29

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

30

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

31

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

32

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

33

J329289

FUEL FILTER

w/ Water Separator; See Figure 03-02

1шт.
