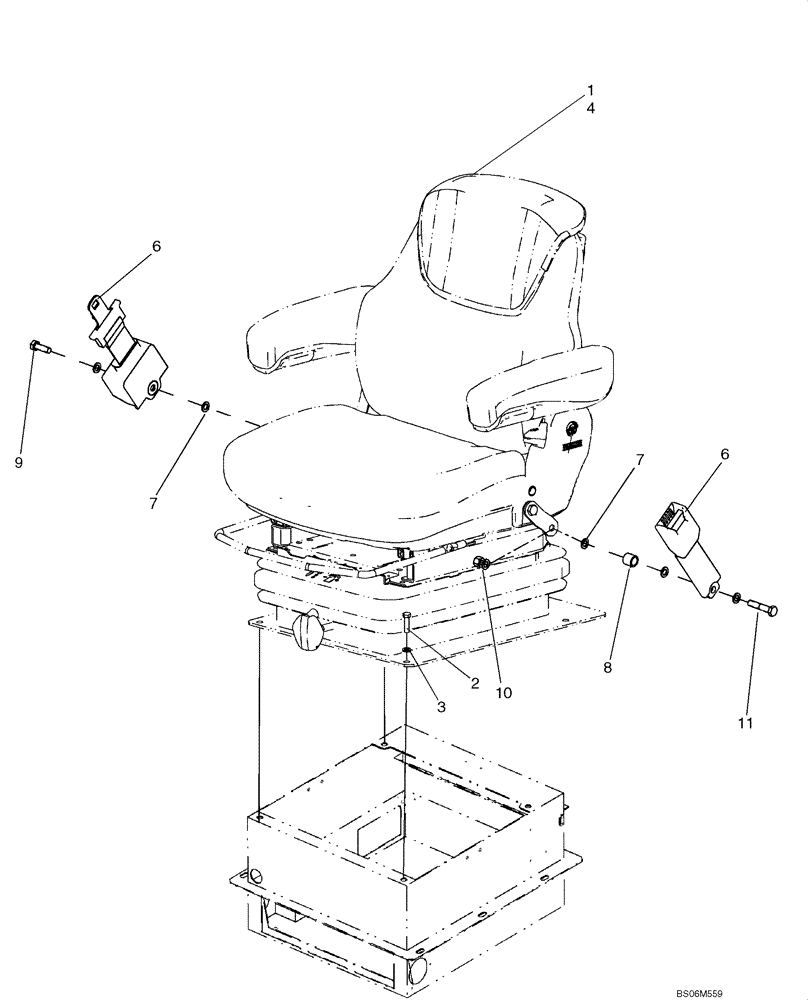

Запчасти Case 921E (09-42) - SEAT - MOUNTING/SEAT BELTS - EUROPE (09) - CHASSIS

REF

INSTRUCTION

EUROPEAN MODELS ONLY

1шт.

1

87398039

SEAT ASSY.

Cloth; Mechanical Suspension; See Figures 09-42B, 09-42C; Use Refs. 2, 3 To Mount; See Figure 09-43, 09-44

1шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

87398040

SEAT ASSY.

Cloth; Air Suspension; See Figures 09-42D, 09-42E; Use Refs. 2, 3 To Mount; See Figure 09-47, 09-48

1шт.

5

121412A1

FUSE,10A, Mini, Red

Air Suspension Seat Only; Not Illustrated

1шт.

REF

INSTRUCTION

SEAT BELT - 51 mm (2 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

6

345370A1

SAFETY BELT ,50.8mm W x 1219.2mm L

1шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

8

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.
