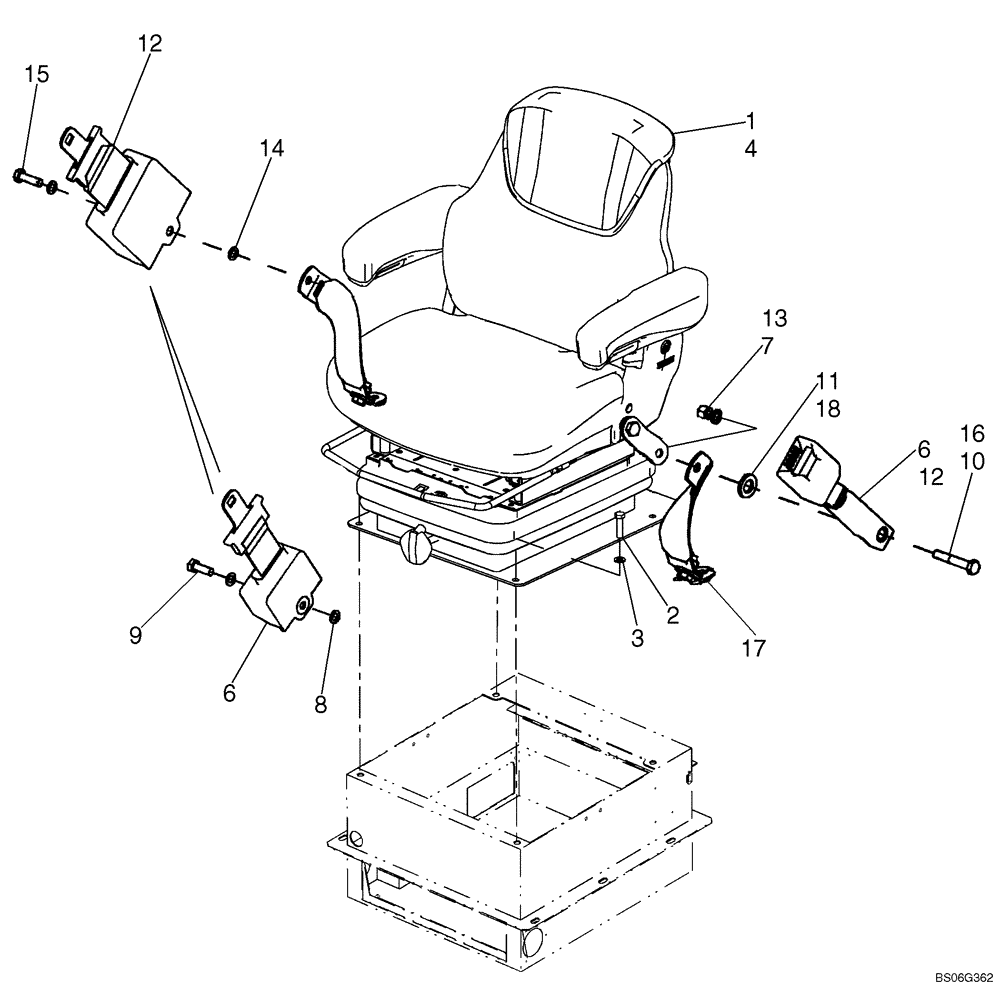

Запчасти Case 921E (09-40) - SEAT - MOUNTING/SEAT BELTS (09) - CHASSIS

1

87398039

SEAT ASSY.

Cloth; Mechanical Suspension; See Figures 09-43, 09-44; Use Refs. 2, 3 To Mount

1шт.

2

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

87398040

SEAT ASSY.

Cloth; Air Suspension: See Figures 09-47, 09-48; Use Refs. 2, 3 To Mount

1шт.

5

121412A1

FUSE,10A, Mini, Red

Air Suspension Seat Only; Not Illustrated

1шт.

REF

INSTRUCTION

SEAT BELT - NORTH AMERICA ONLY - 51 mm (2 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

6

249116A1

SAFETY BELT ,50.80 mm W

If Equipped, Uses Refs. 7 - 10

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

10

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

REF

INSTRUCTION

SEAT BELT - NORTH AMERICA ONLY - 76 mm (3 Inch) WIDE RETRACTABLE SEAT BELT

1шт.

12

249117A1

SAFETY BELT ,76.20 mm W

Uses Refs. 12 - 16

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

16

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

17

87545658

KIT

KIT TETHER, BELT; Hardware Included

1шт.

18

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.
