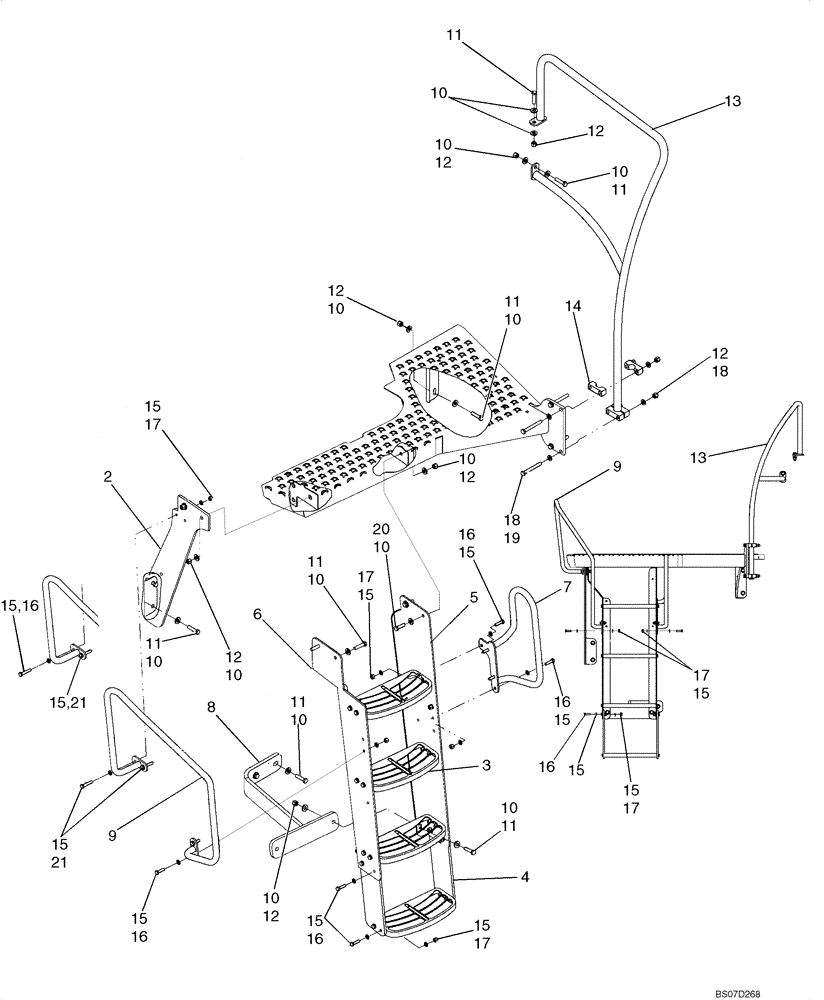

Запчасти Case 921E (09-38) - STEPS - LEFT (09) - CHASSIS

1

87558289

PLATFORM

1шт.

2

87600912

SUPPORT

1шт.

3

87434472

STEP

4шт.

4

87434096

STRAP

2шт.

5

87600906

SUPPORT

LH Rear Step

1шт.

6

87600909

SUPPORT

LH Front Step

1шт.

7

87573987

HANDLE GRIP

RH

1шт.

8

87394342

BRACKET

LH Steps

1шт.

9

87582334

HANDRAIL

LH

1шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

24шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

12шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

14шт.

13

87525482

HANDRAIL

LH

1шт.

14

87394321

MOUNTING PARTS

Platform Rail

4шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

52шт.

16

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24-25шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

26шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

19

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

21

627-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9, Full Thd

1-2шт.
